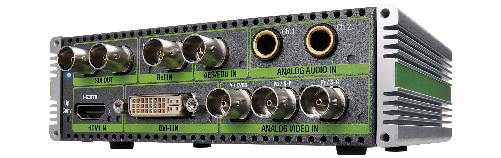

Grass Valley ADVC G1
Any In to SDI Multi-Functional Converter w/ Frame Synchronizer

OUR PART #:  ADVC-G1

The Grass Valley ADVC G1 is a compact and competitively priced converter...
Learn More
Our Price: $1,080.00
List Price: $1,199.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Grass Valley ADVC G1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The Grass Valley ADVC G1 is a compact and competitively priced converter, designed to convert and/or upconvert any kind of professional/broadcast signals to HD/SD-SDI with the full support of the latest 3G technology.

The ADVC G1 will convert and/or upconvert, at the user's choice, sources from HDMI, DVI, component, composite, S-Video, AES/EBU, and analog audio to HD/SD-SDI (3G/1.5G support). With its audio inputs, the ADVC G1 can also be used as an audio embedder. It also features a reference in port which can serve as a frame synchronizer for the analog inputs, eliminating the need to purchase separate expensive equipment.

Grass Valley ADVC G1  Key Features:

  • Convert any type of connection to SDI
  • Incorporates latest 3G technology
  • DVI input with PC resolution support
  • Audio input for audio embedding

Grass Valley ADVC G1 Specifications:

Inputs: HDMI, DVI, RGB, component, composite, S-video, analog audio, AES/EBU, reference

Input Formats:

  • 1080i60/59.94/50
  • 1080p60/59.94/50/30/29.97/25/24/23.98
  • 1080psf/24/23.98
  • 720p60/59.94/50
  • 480i/p60/59.94
  • 576i/p50
  • PC resolutions (640x480, 800x600, 1024x768, 1366x768, 1280x1024,1600x1200, 1920x1200)

Outputs: (3G) HD/SD-SDI

Output Formats:

  • 1080i60/59.94/50
  • 1080p60/59.94/50/30/29.97/25/24/23.98
  • 1080psf/24/23.98
  • 720p60/59.94/50/30/29.97/25/24/23.98
  • 480i59.94
  • 576i50

Dimensions: 142.5 x 42.5 x 98.5 mm
