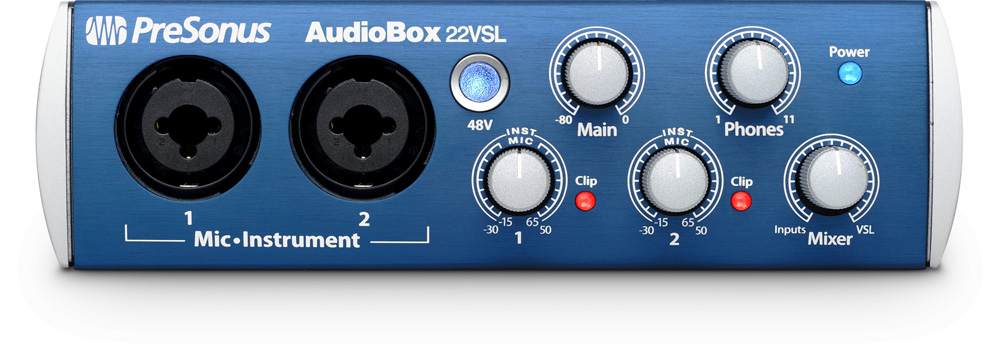

PreSonus AudioBox 22VSL
2 x 2 USB 2.0 Audio/MIDI Interface

OUR PART #:  AUDIOBOX-22VSL

The PreSonus AudioBox 22VSL is a 2x2 USB 2.0 audio/MIDI interface that features two Class A XMAX microphone preamplifiers.
Learn More
Sale Price: $149.83
List Price: $249.95
You save 40%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

PreSonus AudioBox 22VSL
Qty:
In Stock

Similar Products

The PreSonus AudioBox 22VSL is a 2x2 USB 2.0 audio/MIDI interface that features two Class A XMAX microphone preamplifiers.

Using your computer and the bundled PreSonus Virtual StudioLive (VSL) software, the AudioBox 22VSL interface provides a 4 x 2 mixer, reverb and delay effects and the same Fat Channel compression, limiting, semi-parametric EQ and high-pass filter as the PreSonus StudioLive 16.0.2 digital mixer - all with inaudible latency.

The AudioBox 22VSL also boasts 24-bit, 96 kHz recording capabilities for high-quality recording in a small, but powerful package.

PreSonus AudioBox 22VSL Features:

  • Input/Output:
    • Two dual-purpose front-panel input channels, each with:
      • Combo XLR mic and balanced 1/4" instrument input
      • Class A XMAX™ mic / instrument preamp
      • Individual channel-trim controls with 0 to +35 dBu mic gain range
    • Two balanced 1/4” main (L/R) line outputs
    • One stereo 1/4” headphone output with level control
    • MIDI In/Out
    • One USB 2.0 port
  • Meters, Controls, and Features:
    • 48V phantom power for condenser microphones (global)
    • Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
    • Main-output level control
    • Power/USB sync LED
    • LED clip indicator for each channel
    • Mix, adjust input and playback-returns levels, and add effects and signal processing from your laptop or other computer
  • Digitalia:
    • 24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate
    • Professional-grade A/D/A converters (+114 dBu dynamic range)
    • Zero-latency analog monitoring with playback/input Mix control knob
    • Mac®- and Windows®-compatible, including Mac OS X 10.7 Lion and Windows 7
    • Supports ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows Vista and Windows 7)
  • Physical:
    • 1/3U rack-mountable (screw-mount to standard rack tray, not included)
    • Road-rugged construction with all-metal chassis and metal knobs
    • Weighs just 1.6 lb. (0.7 kg)
    • Powered via USB bus
  • Bundled Software:
    • Virtual StudioLive™ (VSL) ultra-low-latency control and effects software for Mac® and Windows®; manages:
      • Near-zero-latency monitoring with extensive signal processing
      • 4x2 DSP mixer
      • StudioLive™16.0.2 Fat Channel compressor, limiter, expander, high-pass filter, and semi-parametric EQ for each analog input, and analog output and its DAW return
      • Two stereo effects buses with reverb and delay
      • More than 50 Fat Channel DSP presets for enhancing instrument and vocal recordings
    • Studio One® Artist 2:  PreSonus’ revolutionary digital audio workstation for Mac and Windows, with unlimited track count and 10+ GB of third-party resources. With Studio One's Nimbit® extension, you can immediately start selling your music.

PreSonus AudioBox 22VSL Specifications:

  • Microphone Inputs:
    • Connector Type: Combo, XLR, female, balanced
    • Mic Preamp EIN: -129 dB, 20 kHz BW, max gain, Rs=40 Ohms, A-wtd
    • Frequency Response: 20 Hz - 20 kHz, +/- 0.3 dB, unity gain
    • THD+N: 0.005%, 0 dBu, 1 kHz, unity gain, 20 kHz BW, A-wtd
    • S/N Ratio: 94 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
    • Gain Control Range: -15 dB to +65 dB
    • Input Max Headroom: +10 dBu, < 0.5% THD
    • Input Impedance: 1.7 kOhms
    • Phantom Power: +48 VDC, 10 mA total
  • Instrument Inputs:
    • Connector Type: Combo, 1/4” TS, female, unbalanced
    • Frequency Response: 20 Hz - 20 kHz,  +/- 0.3 dB, unity gain
    • THD+N: 0.006%, 0 dBu, 1 kHz, unity gain, 20 kHz BW, A-wtd
    • S/N Ratio: 89 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
    • Gain Control Range: -30 dB to +50 dB
    • Input Max Headroom: +15 dBu, < 0.5% THD
    • Input Impedance: 1 Mega-ohm
  • Analog Outputs:
    • Connector Type: 1/4” TRS, female, impedance balanced
    • Frequency Response: 20 Hz - 20 kHz, +/- 0.2 dB
    • THD+N: 0.002%, 1 kHz, 20 kHz BW, A-wtd
    • S/N Ratio: 107 dB, 1 kHz, max gain, 20 kHz BW, unwtd
    • Output Level: +10 dBu
    • Output Impedance: 51 Ohms
  • Headphone Outputs:
    • Connector Type: 1/4” TRS, female, stereo
    • Maximum Power: 30 mW/ch @ 60O load
    • Frequency Response: 20 Hz - 20 kHz, +/- 0.5 dB, max gain
    • THD+N: 0.08%, 1 kHz, max gain, 20 kHz BW, A-wtd
    • S/N Ratio: 90 dB, 1 kHz, max gain, 20 kHz BW, unwtd
  • Digital:
    • Host Interface: USB 2.0 high-speed
    • Bit Depth: 24-bit
    • Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
    • Maximum Latency: 6 mS, analog input to analog output
    • ADC Dynamic Range: 114 dB, 48 kHz sample rate, A-wtd
    • DAC Dynamic Range: 114 dB, 48 kHz sample rate, A-wtd
  • Power: USB bus-powered, +5 VDC, < 500 mA
  • System Requirements:
    • Windows:
      • Windows® 7 x64/x32 SP1, Windows 8 x64/x32
      • Intel® Core™ Duo or AMD Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
      • 2 GB RAM (4 GB or more recommended)
    • Mac:
      • Mac® OS X 10.8 or later
      • Intel Core Duo processor (Intel Core 2 Duo or Intel Core i3 or better recommended)
      • 2 GB RAM (4 GB or more recommended)
    • Windows and Mac Systems
      • USB 2.0 Port
      • Internet connection (only for activation)
      • DVD-ROM drive
      • Monitor with at least 1024x768 resolution
      • 20 GB hard-disk space
      • Internal or external 7200 RPM storage drive highly recommended
  • Physical:
    • Road-rugged construction with all-metal chassis and metal knobs
    • Dimensions (HxDxW): 1/3U rack-mount (with standard rack tray, not included); 1.75" x 5.5" x 5.5" (44.45mm x 139.7mm x 139.7mm)
    • Weight:  1.6 lbs. (0.7 kg)
