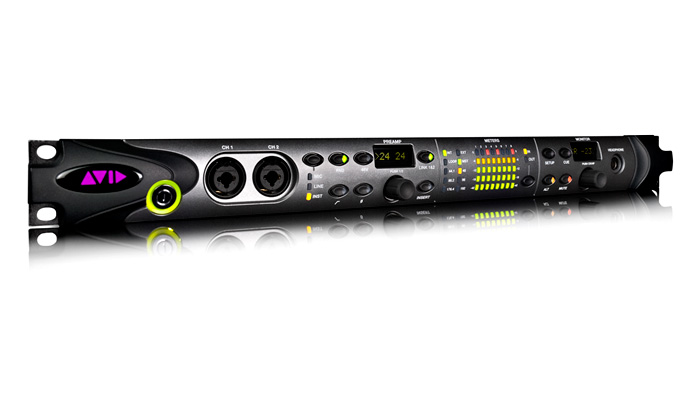

Avid HD OMNI-I/O [EDUCATIONAL PRICING]
Pro Tools|HD Professional Preamp/I/O/Monitoring Interface for Educational Institutions

OUR PART #:  HD-OMNI-I/O-EDU

Note: This product is specially priced for Educational Institutions . A purchase order from your organization is required to fulfill an order at this price.
Learn More

Call for info!

Similar Products

Note: This product is specially priced for Educational Institutions. A purchase order from your organization is required to fulfill an order at this price. For more information on how to place your order, please call us at 800-356-5844.

Comes with upgrade/standard Avid support plan good for 1 year.

Capture pristine, high-resolution audio through premium mic preamps and monitor your sessions in up to 7.1 surround with the all-in-one HD OMNI interface. Designed to completely integrate with Avid Pro Tools|HD, HD OMNI is an ideal choice for individual musicians, composers, post-production studios, and anyone else who demands top sound quality and the convenience of an all-in-one interface. Experience best-in-class A/D and D/A conversion, mic preamps, the lowest possible latency, and a full monitoring section—all in one compact interface.

No need to route signals through multiple interfaces—with HD OMNI, you can do everything in one single-space rack, so you save money and space. As the hub of any music studio, you can use HD OMNI to record high-quality instrument and vocal performances, while providing dedicated cue mixes for artists, and monitor the performance through a discrete mix. For post production, not only do you have overdub and Foley recording capabilities at your disposal, you can use HD OMNI to monitor mixes with up to 7.1 channels—and fold down mixes from 7.1 to almost any channel configuration subset.

Raising the bar on audio performance, HD OMNI features premium A/D and D/A converters, so you can achieve higher audio fidelity, extensive dynamic range, super-low jitter, and the absolute lowest possible latency in your sessions. You also get built-in sample rate conversion and a soft clip feature for worry-free performance. And using Curv, a new built-in soft-knee limiter that catches even the fastest transients, you can track hotter signals and be assured that any unexpected peaks in your input won’t put you in the red.

Whether you want to listen in stereo or surround, monitor sound personally or set up a personal mix for someone else, or hear your work in headphones or on the big speakers, you can do it all with HD OMNI. Mix and monitor up to 7.1 surround (with fold down to stereo). Hear how your mix sounds on different speakers using the Main and ALT speaker selections. Set up an integrated cue mix for artists to monitor. Or isolate yourself with your own headphone mix. And if you don’t feel like launching Pro Tools— or even turning on your computer—HD OMNI features a built-in, customizable, 14x26 pass-through mixer, so you can continue to monitor external sources, such as keyboards, drum machines, and digital music players, independently from your recording setup.

Note: Please be aware that you’ll need Pro Tools HD 8.1 or higher software to use this interface—a free update is available to download from Avid's website for all registered Pro Tools HD 8.x users.

AVID HD OMNI-I/O Features:

  • Pristine audio clarity and ultra low latency through state-of-the-art A/D and D/A conversion
  • High-quality, low-noise analog I/O:
    • 2 premium, digitally-controlled mic/DI preamps
    • 4 line inputs
    • 8 line outputs, with true analog gain
  • Versatile digital I/O, with sample rate conversion:
    • 8 channels of ADAT I/O (supports S/MUX II and IV)
    • 2x8 channels of AES/EBU I/O
    • 2 channels of S/PDIF I/O
  • Route audio independently from Pro Tools with the persistent 14X26 pass-through mixer
  • Completely integrates with Pro Tools|HD for full routing, mixing, and monitoring control
  • Track hotter signals and smooth out sounds with Curv, a built-in soft-knee limiter
  • Hear your mixes in however many channels you need, from stereo to 7.1 surround
  • Improve communication while tracking with dedicated cue path
  • Keep things in sync with dedicated Word Clock and Loop Sync I/O
  • Compact 1U rack-mountable chassis
  • Connects to Pro Tools|HD through a DigiLink Mini connection (cable and adaptor included)

AVID HD OMNI-I/O Specifications:

System Requirements

  • All configurations of HD OMNI work with the followinghost audio systems:
    • Avid-qualified Pro Tools|HD family system running Pro Tools HD 8.1 or higher software
    • Avid-qualified Pro Tools|HD family system running a Core Audio or ASIO-compliant application
  • Analog Inputs: 4
  • Analog Outputs: 8
  • Mic / Instrument Inputs: 4 (2 simultaneous inputs at a time)
  • Mic Pre Gain: 65 dB
  • Headphone Output: 1
  • Monitoring Formats: 7.1, 7.0, 6.1, 6.0, 5.1, 5.0, QUAD, LCRS, LCR, 2.1, Stereo, Mono
  • Speaker Selection: 2 sets
  • Persistent Mixer: 14 input channels to 2 multichannel monitoring paths, each with its own fold-down configuration
  • AES/EBU I/O: 2 x 8
  • AES Single-Wire (192 kHz): Yes
  • S/PDIF I/O: 2
  • ADAT I/O: 8
  • AES/EBU I/O: 2 x 8
  • AES Single-Wire (192 kHz): Yes
  • S/PDIF I/O: 2
  • ADAT I/O: 8
  • S/MUX: S/MUX II and IV
  • SRC: S/PDIF I/O
  • Word Clock I/O: 1 In + 1 Out
  • Loop Sync I/O: 1 In + 1 Out
  • Curv: Yes
  • Soft Clip: Yes
  • Digital Interface: DigiLink Mini
  • Chassis: 1U rack-mountable chassis

Mic Inputs:

  • Frequency Response: 20 Hz – 20 kHz (± .05 dB)
  • Gain Range: 65 dB
  • EIN: -128 dB
  • THD+N: -107 dB (0.00045%)
  • CMRR: -93 dB

Line Inputs:

  • Frequency Response: 20 Hz – 20 kHz (± .03 dB)
  • Dynamic Range: 118 dB (A-weighted)
  • THD+N: -111 dB (0.00028%)

Line Outputs:

  • Frequency Response: 20 Hz – 20 kHz (± .03 dB)
  • Dynamic Range: 120 dB (A-weighted)
  • THD+N: -108 dB (0.00039%)
  • Line Output Level / Trim: +10 dBu or +24 dBu/-40dB to +10dB (0.1dB steps)

Headphone Outputs:

  • Frequency Response: 20 Hz – 20 kHz (± .03 dB)
  • Dynamic Range: 118 dB (A-weighted)
  • THD+N: -107 dB (0.00045%)
