Jands JAVISTAM1/256

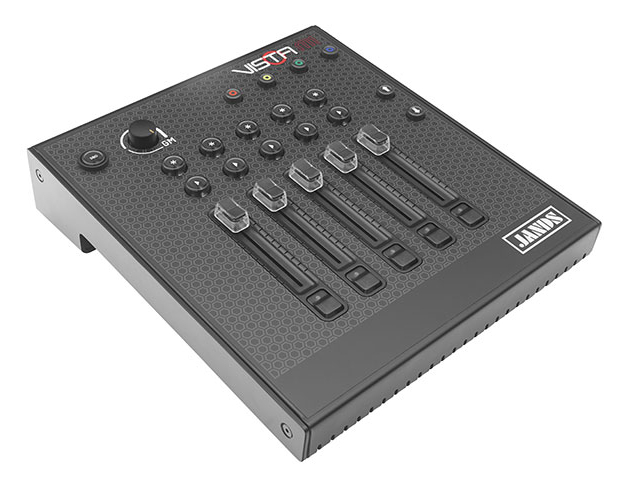

Jands Vista M1 Control Surface With 256 Channel Dongle

OUR PART #  JAVISTAM1/256


The Vista M1 from Jands Lighting is an ultra-compact and extremely cost-effective playback-only Vista control surface. The M1 is ideal for situations where you can do your programming in advance on your PC, but you still want hardware to control the playback of your show.

Designed to be used with a laptop, the M1 gives you all the playback benefits of a Vista show in a compact and portable package that‘s perfect for trade show booths, hotels, clubs or any venue where space is tight.

With five playbacks, including faders and flash buttons, plus a rotary master fader, the M1 is a complete and portable Vista playback module. When you want to travel light but you don‘t want to compromise your show, the M1 is the ideal live playback solution.

Jands Vista M1 Features:

  • Main Controls:
    • Blue, Green, Yellow, Red modifier buttons
    • Grand Master (rotary) fader and DBO button
  • Playback Controls:
    • 5 Playbacks with faders and flash buttons
    • Playbacks feature; Select and Go buttons
    • Split mode allows control of up to 15 Cuelists
    • Playbacks can be configured for control of Groups, Presets and more
    • Page Up / Down buttons
  • DMX Output:
    • DMX output channels determined by dongle – in this case 256 channels
    • Upgrades available
  • Input and Output Connections:
    • 2 DMX outputs
  • System Requirements:
    • Windows 7, Vista or XP Professional with Service Pack 3, either 32 or 64bit edition.
    • Mac OSX 10.6 Snow Leopard or 10.7 Lion *Hardware must support the 64-bit kernel
    • Intel processor i3 (i5 or better recommended)
    • 2GB of RAM (4GB recommended)
    • 4GB of available hard disk space

Jands Vista M1 Specifications:

  • Power supply: USB Powered, 2.5W max
  • Operating temp: 0°C - 40°C /  32°F - 104°F
  • Processor: 60MHz ARM7
  • SRAM: 128 Kbytes
  • DMX512 Output:
  • Two x E1.11-2004 protocol
  • AXR 5-pin socket
  • USB: One x Type B
  • Dimensions: 250 x 284 x 59mm / 9.84 x 11.18 x 2.32in.
  • Net weight: 2kg / 4.41 lbs.
  • Shipping weight: 2.8kg /  6.17 lbs.
  • Front Panel:
    • Playbacks: 5 with faders and flash buttons
    • Grand Master: Rotary fader with DBO
    • Modifiers: 1 Set of 4
