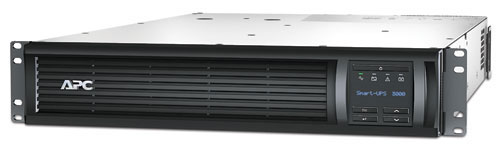

American Power Conversion SMT3000RM2U
2700-Watt 3000VA Rackmountable Smart UPS

OUR PART #:  SMT3000RM2U

The SMT3000RM2U is a Smart-UPS with 3000 VA, an input and output of 120V and includes a USB interface port . Rack height is 2 U.
Learn More
Our Price: $1,358.88
List Price: $1,930.00
You save 30%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion SMT3000RM2U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SMT3000RM2U is a Smart-UPS with 3000 VA, an input and output of 120V and includes a USB interface port . Rack height is 2 U.

The award-winning Smart-UPS unit from APC by Schneider ElectricTM is the most popular UPS in the world for servers, storage, and networks. Trusted to protect critical data and equipment from power problems, the UPS supplies clean and reliable network-grade power. In addition to Legendary Reliability and manageability, Smart-UPS units have extremely high efficiency at low, medium, and high load levels, making them ideal for today’s multicore or virtualized servers that have varying load consumption.

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal for servers, point-of-sale, routers, switches, hubs, and other network devices.

Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable

Features:

  • Slim 2U Rack/Tower Convertible Form: Display rotates easily for use in or out of a rack.
  • High-frequency Design: Reduces size of (or eliminates) bulky transformers making installation even easier.
  • Low Voltage Models (2 – 3 kVA) Configurable output from 100 V – 127 V on low-voltage models.
  • Models Available with Pre-installed Network Cards: Models with “NC” suffix have pre-installed AP9631 network cards with temperature monitoring.
  • Smart External Battery Connector: Accepts external batteries and increases runtime automatically to increase availability.
  • Switched Outlet Groups: Reboot hung devices, shed non-critical loads to conserve runtime, sequenced start-up/turn off.
  • Emergency Power Off (EPO): Provides for remote UPS shutoff in the event ofa fire or other emergency.

Specifications:

Output

  • Output Power Capacity:   2700 Watts / 3000VA
  • Max Configurable Power:  2700 Watts / 3000 VA
  • Nominal Output Voltage:  120V
  • Efficiency at Full Load: 98%
  • WaveformType:           Sine wave
  • Output Connections:
    (6) NEMA 5-15R
    (2) NEMA 5-20R

Input

  • Nominal Input Voltage:  120V
  • InputFrequency:        50/60 Hz +/- 3 Hz (autosensing)
  • Input Connections:      NEMAL5-30P
  • CordLength:            8feet (2.44 meters)
  • Input voltage range for main operations: 82 - 144V
  • Input voltage adjustable range for mains operationL: 75 - 154V

Battery Type

  • Maintenance-free sealed Lead-Acid battery withsuspended electrolyte : leakproof
  • Typical recharge time
    3hour(s)
  • Replacement Battery
    RBC43
  • RBC™ Quantity:  1

Communications & Management

  • Interface Port(s)
    USB
  • Available SmartSlot™ Interface Quantity
    1
  • Control panel
    LED statusdisplay with On Line : On Battery : Replace Battery and Overloadindicators,Multi-function LCD status and control console
  • Audible Alarm
    Alarm when onbattery : distinctive low battery alarm : overload continuous tone alarm
  • Surge Protection and Filtering
  • Surge energy rating:  459 Joules

Physical

  • Maximum Height
    3.39 inches(86 mm)
  • Maximum Width
    18.90 inches(480 mm)
  • Maximum Depth
    26.89 inches(683 mm)
  • Rack Height
    2U
  • Net Weight
    97.42 lbs. (44.28kg)
  • Shipping Weight
    113.74 lbs.(51.70 kg)
  • Shipping Height
    10.00 inches(254 mm)
  • Shipping Width
    23.62 inches(600 mm)
  • Shipping Depth
    38.60 inches (980 mm)
    Color
  • Black
  • Units per Pallet
    8.00

Environmental

  • Operating Environment
    32 -104 °F (0 - 40 °C)
  • Operating Relative Humidity
    0- 95%
  • Operating Elevation
    0-10000feet (0-3000 meters)
  • Storage Temperature
    5 - 113°F (-15 - 45 °C)
  • Storage Relative Humidity
    0 -95%
  • Storage Elevation
    0-50000feet (0-15000 meters)
  • Audible noise at 1 meter from surface of unit
    55.00 dBA
  • Online Thermal Dissipation
    348.00 BTU/hr

Conformance

  • Regulatory Approvals
    CSA,FCCPart 15 Class A,UL 1778
  • Standard Warranty
    3 yearsrepair or replace (excluding battery) and 2 year for battery
  • Equipment protection policy
    Lifetime : $150000
  • Environmental Compliance
    RoHS 7b Exemption,REACH: Contains No SVHCs
