Radio Design Labs D-J2
Mic/Line Input Input Assembly with RCA Jacks


Our Price: $48.04
List Price: $64.26
You save 25%! (Low Price Guarantee)
In Stock

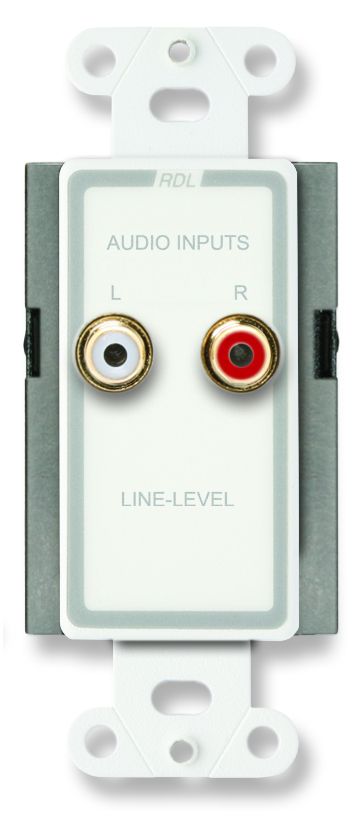

Radio Design Labs' D-J2 is a complete unbalanced audio input panel assembly.  The front panel features two phono jacks intended for mono or stereo consumer level sources.  LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum.  A balanced line-level output is provided on the rear-panel terminal block for connection to 10 kOhm or higher input impedance line level module or equipment inputs.  The back of the D-J2 is finished with a metal enclosure clearly labeled for easy installation.

Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

The D-J2 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U).  They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Radio Design Labs D-J2 Features:

  • Wall Mounted Line-Level Audio Input Panel
  • Gold Plated Phono Jacks
  • Hum Cancellation on Unbalanced Line Inputs
  • Transformer Isolation for Unbalanced Line Inputs
  • Balanced Output for Unbalanced Line Inputs

Radio Design Labs D-J2 Specifications

  • Input Connectors (2): Phono jacks with gold contacts
  • Output Connector: Terminal block
  • Output Connections (3): +, -, SHIELD
  • Frequency Response (line in): 30 Hz to 20 kHz (┬▒1 dB)
  • Power Requirement: Passive
  • Overall Dimensions: 4.88" H x 3.39" W x 1.29" D(12.40 x 8.61 x 3.28 cm)
  • Backbox Mounting Requirements: 2.73" H x 1.8" W x1.5" H (6.93 x 4.57 x 3.81 cm)
  • Dimensions: 4.13" H x 1.7" W x 2.15" D (10.49 x 4.32 x 5.4)
