Azden 330LX
Dual-Channel UHF Body-Pack/Plug-in Combo System

OUR PART #:  330LX

Our Price: $810.00
List Price: $1,170.00
You save 31%!
Write the first review.
Azden 330LX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

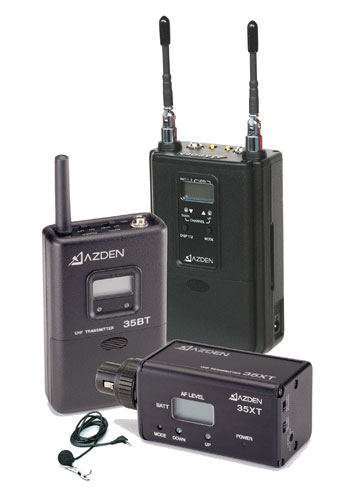

The 330LX comes with a 35BT/EX-305 body-pack/mic and a 35XT plug-in packed in a carry case

The 330 Series is a high quality dual-channel UHF camera-mount wireless system that features 188 User-Selectable frequencies displayed on an LCD screen to assure you of always finding a "free" channel.

Features:

  • Discrete 2-channel Camera-mount UHF Receiver
  • 188 Selectable UHF Freq. (566.125-589.875 MHz)
  • New, Pivoting High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Mini-Jack Out w/Supplied 46" Mini and 24" XLR Cables
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” Batteries (not included)

Receiver:

Freq. Range: UHF 188 Freq. (566.125-589.875MHz)
Type of Reception: FM
Oscillator: PLL Synthesized
RF Squelch Level: -95dBm
Frequency Response: 50Hz – 15kHz
S/N Ratio: >84dB (100% Deviation)
Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
              -28 dBm (100% Deviation - Mic Level)
Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
             2 “AA” rechargeable Ni-MH (2 x 1.2V)
Dimen.: 2.87"W x 4.45"H x 1.59"D (73 x 113 x 40.5 mm)
Weight: Approx. 10.2 oz (290g) w/batteries

Body-pack Transmitter:

Freq. Range: UHF 188 Freq. (566.125-589.875MHz)
Oscillator: PLL Synthesized
RF Power: 25mW
Frequency Response: 50Hz – 15kHz
Max. Deviation: ±40kHz @ 1kHz Modulation
            MIC Input – 11dBm
Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
             2 “AA” rechargeable Ni-MH(2 x 1.2V)
Dimen.: 2.52"W x 3.93"H x 1.16"D (64 x 100 x 27 mm)
Weight: Approx. 6oz (170g) w/batteries .

Plug-In Transmitter:

Freq. Range: UHF 188 Freq. (566.125-589.875MHz)
Antenna: Internal
Max. Input level: -16dBm
RF Power: 25mW
Input Impedance: 25k ohms
Audio Adjust. Range: -65dBm to 46dBm
Battery: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
             2 “AA” rechargeable Ni-MH(2 x 1.2V)
Dimen.: 1.57"W x 1.57"H x 4.49"L (40 x 40 x 114 mm)
Weight: Approx. 6.35oz (180g) w/battery



Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
