Azden 310LX
Mic Combo Sytem

OUR PART #:  310LX

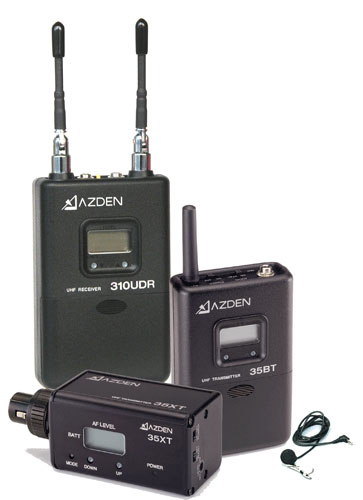

The 310LX comes with a 35XT plug-in and a 35BT/EX-503L body-pack mic along with a 310UDR receiver - packed in a carry case.
Learn More
Our Price: $595.00
List Price: $860.00
You save 31%!
Write the first review.
Azden 310LX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The 310LX comes with a 35XT plug-in and a 35BT/EX-503L body-pack mic along with a 310UDR receiver - packed in a carry case.

The 310 Series is a high quality diversity UHF camera-mount wireless system that features 188 User-Selectable frequencies displayed on an LCD screen to assure you of always finding a "free" channel.

Features:

  • 188 Selectable UHF Freq. (566.125-589.875 MHz)
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Mini-Jack Out w/Supplied 24" Mini-to-XLR Cables
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” Batteries (not included)

Specifications:

Receiver:

Freq. Range: UHF 188 Freq. (566.125-589.875MHz)
Type of Reception: FM
Oscillator: PLL Synthesized
RF Squelch Level: -95dBm
Frequency Response: 50Hz – 15kHz
S/N Ratio: >84dB (100% Deviation)
Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
             -28 dBm (100% Deviation - Mic Level)
Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
             2 “AA” rechargeable Ni-MH (2 x 1.2V)
Dimen.: 2.48"W x 3.86"H x 1.12"D (63 x 98 x 28.5 mm)
Weight: Approx. 6.7oz (190g) w/batteries.

Body-pack Transmitter:

Freq. Range: UHF 188 Freq. (566.125-589.875MHz)
Oscillator: PLL Synthesized
RF Power: 25mW
Frequency Response: 50Hz – 15kHz
Max. Deviation: ±40kHz @ 1kHz Modulation
            MIC Input – 11dBm
Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
             2 “AA” rechargeable Ni-MH(2 x 1.2V)
Dimen.: 2.52"W x 3.93"H x 1.16"D (64 x 100 x 27 mm)
Weight: Approx. 6oz (170g) w/batteries

Plug-In Transmitter:

Freq. Range: UHF 188 Freq. (566.125-589.875MHz)
Antenna: Internal
Max. Input level: -16dBm
RF Power: 25mW
Input Impedance: 25k ohms
Audio Adjust. Range: -65dBm to 46dBm
Battery: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
             2 “AA” rechargeable Ni-MH(2 x 1.2V)
Dimen.: 1.57"W x 1.57"H x 4.49"L (40 x 40 x 114 mm)
Weight: Approx. 6.35oz (180g) w/battery
