Ace Backstage Co. PNL-107

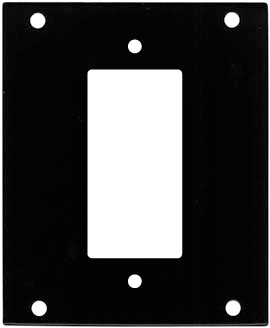

Decora Punch Plate Floor Box

OUR PART #:  PNL-107

The “CONNECTRIX” System expands connectivity possibilities utilizing a unique panel cutout detail and an array of standard and new isolated connectors.
Learn More
Our Price: $14.18
List Price: $15.51
You save 9%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. PNL-107
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The “CONNECTRIX” System expands connectivity possibilities utilizing a unique panel cutout detail and an array of standard and new isolated connectors. This system provides more connectors and mounting options in stock ACE panels. The benefit is fast order turn around and lower cost than a custom punched panel. The look of custom fabricated panels with off-the-shelf stock prices and immediate delivery. The “CONNECTRIX” Pocket Panels (#MP-100, #PNL-100, #PNL-120, #PNL-140) are flat and strong. The Panels are made from high strength aluminum alloy (6061-T6) that is .062” thick.

The “CONNECTRIX” Pocket Panels are machined, powder coated, and in stock for immediate delivery. Many pre-cut stock #MP-100, #PNL-100, #PNL-120, and #PNL-140 Series “CONNECTRIX” System Connector Panels are stocked and available for immediate loading and engraving. Standard "CONNECTRIX" Panels are created from high strength, tough, aircraft aluminum alloy (6061-T6) that is 1/16" (.062") thick. The standard panels mount with (4 or 6) self-tapping screws. Each panel is CNC machined to precisely mate with the designated connectors and in the pocket mounting holes. Each Standard "CONNECTRIX" Panel is finished with oven cured semi-gloss black powder coat.

Most panels provide header space for custom engraving which is fast and easily accomplished on a separate dedicated CNC engraving machine. The finished panels show bright aluminum in the engraved characters and need not be back filled. ACE standard panels are flat, strong, and rigid like the typical thinner mild steel panels. Because the panels are machined and not punched they stay flat and undistorted unlike punched panels which distort in the punching process. The machined “CONNECTRIX” cutouts combine popular mounting patterns of the Neutrik® “D” series and Switchcraft® “E” series connectors with a generous rectangular cutout that mates with a growing array of adapter-mounted standard connectors. The adapter mount is plastic and provides ground isolation between the panel and connector.

Using the “CONNECTRIX” system panel it is possible to mount any combination of modular jacks (RJ45, RJ11 etc.), BNCs, dual RCAs, mic jacks, speaker jacks and numerous other standard connectors without a single custom punch. This system provides for more connectors and mounting options in stock standard ACE panels. The benefit is faster order turn around and lower cost. Less custom fabrication for custom spec results with off-the-shelf stock prices.

Features:

  • FLEXIBLE CONNECTOR MOUNT: PNL-100 Series "CONNECTRIX" Panels utilize a custom machined “CONNECTRIX” System Cutout which combines the popular mounting patterns of the Neutrik® “D” and Switchcraft® “E” series connectors with a generous rectangular cutout that mates with a growing array of adapter-mounted standard connectors.
  • DURABLE CONSTRUCTION: ACE "CONNECTRIX" System Panels are machined from tough 1/16" thick Aluminum Alloy (6061-T6) on a dedicated CNC routing machine. Stock Panels are flat, strong, and rigid like typical thinner mild steel panels. As a consequence of the panels being machined and not punched they remain flat and undistorted unlike punched panels which distort in the punching process.
  • MEDIUM CONNECTOR CAPACITY: One (1) #PNL-106 "CONNECTRIX" Panel will mount up to 6 "CONNECTRIX" Connectors.
  • EASY INSTALLATION: Standard "CONNECTRIX" Pocket Panels mount with (4 or 6) self-tapping screws. Each Pocket Panel is CNC machined to precisely mate with the designated connectors and in the pocket mounting holes.
  • DURABLE FINISH: Oven cured, semi-gloss, black powder coat.
  • CUSTOM ENGRAVING: Most Pocket Panels provide header space for custom engraving which is fast and easily accomplished on a separate dedicated CNC engraving machine. The finished panels show bright aluminum in the engraved characters and need not be back filled.
  • CUSTOM PANELS AT A LOWER COST: The “CONNECTRIX” System expands connectivity possibilities by providing more connectors and mounting options in stock ACE Pocket Panels. The benefit is fast order turn around and lower cost than a custom punched panel. The look of custom fabricated panels with off-the-shelf stock prices and immediate delivery.
  • DURABLE FINISH: Oven cured, semi-gloss, black powder coat finish.
