West Penn CN-BNCP-825
Connector BNC Comp MiniMax

OUR PART #  CN-BNCP-825

Our Price: $5.63
List Price: $6.75
Save up to 57% when you order by quantity!
Buy 20 @ $3.38 ea.
Buy 40 @ $3.15 ea.
Buy 60 @ $2.93 ea.
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

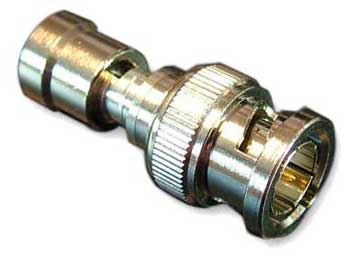

Male BNC Compression Connector, MiniMax 25AWG, Small Profile Design.

FEATURES

  • 75 Ohm construction
  • DC-1 GHz > 27 dB Return Loss < 1.10 VSWR
  • DC-2 GHz > 23 dB Return Loss < 1.16 VSWR
  • DC-3 GHz > 22 dB Return Loss < 1.18 VSWR
  • Cable Pullout Fore Exceeding 65"/lbs
  • Body Material: Brass
  • Body Plating Material: Nickel

COAX SIZING (Inches) Min ~ Max

  • Center: 0.15" ~ 0.25"
  • Dielectric: .095" ~ 1.05"
  • Outer Jacket: .145" ~ .160"



West Penn CN-BNCP-825
Connector BNC Comp MiniMax

OUR PART #  CN-BNCP-825

Product Information:

Male BNC Compression Connector, MiniMax 25AWG, Small Profile Design.

FEATURES

  • 75 Ohm construction
  • DC-1 GHz > 27 dB Return Loss < 1.10 VSWR
  • DC-2 GHz > 23 dB Return Loss < 1.16 VSWR
  • DC-3 GHz > 22 dB Return Loss < 1.18 VSWR
  • Cable Pullout Fore Exceeding 65"/lbs
  • Body Material: Brass
  • Body Plating Material: Nickel

COAX SIZING (Inches) Min ~ Max

  • Center: 0.15" ~ 0.25"
  • Dielectric: .095" ~ 1.05"
  • Outer Jacket: .145" ~ .160"
