Lowell CS650-SS Program Selector Attenuator, 50W, 6 Source, 2 Gang, Stainless Steel

OUR PART #: CS650-SS MFR #: CS650-SS

Copied to clipboard

The CS650-series is a combination volume control / selector switch for controlling the speaker volume on up to six source connections. ...Read more

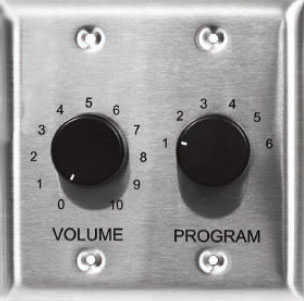

Lowell CS650-SS Program Selector Attenuator, 50W, 6 Source, 2 Gang, Stainless Steel Image 1
Lowell CS650-SS Program Selector Attenuator, 50W, 6 Source, 2 Gang, Stainless Steel
Our Price: $116.62
List Price: $132.52
You save 12%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The CS650-series is a combination volume control / selector switch for controlling the speaker volume on up to six source connections. The assembly includes Lowell's UL Listed 50W auto transformer (Model 50LVC) mounted on the left side of a 2-gang plate with six-input selector switch (Model CS6) mounted on the right side. The 50W volume control for use with 70V or 25V speaker lines provides 33dB attenuation in ten steps*. The selector switch is a two-pole, non shorting rotary style to assure complete isolation between lines. Wiring connections to the volume control are plug-in screw terminations for prewire convenience. Connections to the selector switch are 'Euro-style' screw terminals allowing the unit to be field connected for use together or independently.

The plate selection includes standard (stainless steel) or Decora-style (white, black, white/stainless, black/stainless). All Decora-style models include one 2-gang plate AND two 1-gang plates to provide maximum flexibility in system design. Units include attractive knobs and mounting screws. Mounting depth is 2-1/8" for installation in standard 2-gang or 4”SQ electrical outlet boxes with a 2-gang mud ring (by others).

Features:

  • Unit includes 50W volume control (Series 50LVC) and 6 source program selector switch (Series CS6).
  • Standard 2-gang stainless steel plate or Decora-style plate (white, black, stainless steel with white or black sub-plate).
  • Decora models ship with both double gang and two single gang plates for single or separate location mounting in field.

Specifications:

  • Volume Control Rating: 50W, 3dB step
  • Volume Connections: Plug-in screw
  • Selector Switch: Two-pole, rotary
  • Selector Connections: Euro-style screw
  • Assembly Depth: 2.125"
  • Plate Style: Standard
  • Plate Color: Stainless
