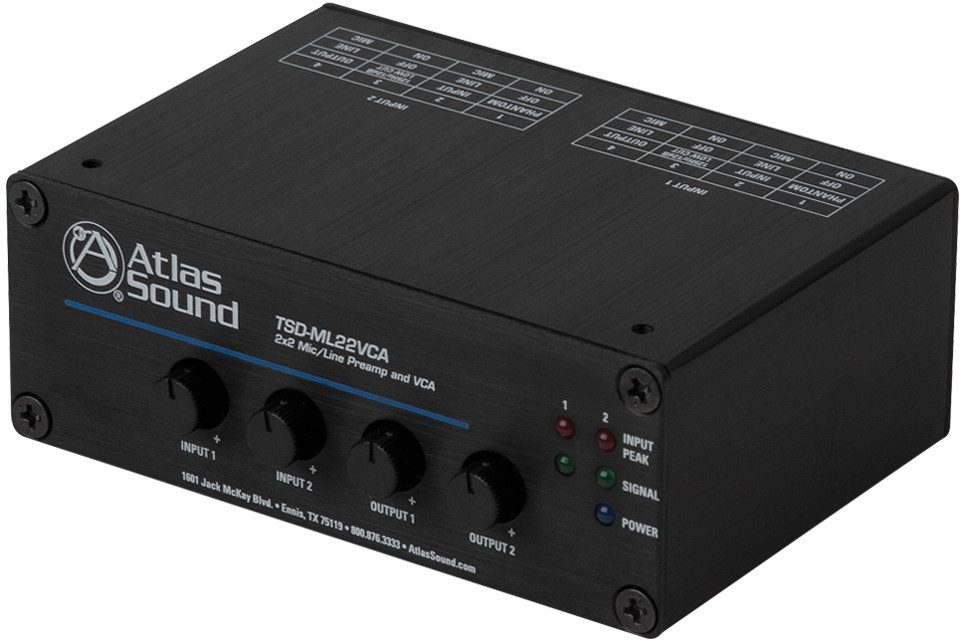

Atlas Sound TSD-ML22VCA
2x2 Microphone / Line Preamp and VCA

OUR PART #:  TSD-ML22VCA

The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier.
Learn More
Our Price: $190.99
List Price: $237.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound TSD-ML22VCA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier. VCA's inserted prior to amplification provide a far more efficient solution than transformer-based attenuators for volume adjustment in high power music applications. The dual channel design can provide level control for two separate discrete zones or stereo sources and is perfect for use in sports bars, restaurants, hotels or other installations.

The TSD-ML22VCA also provides two high quality, low noise mic pre-amps, which allow simplification of designs that require remote microphone level adjustment. Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum.

Unit requires power supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.  Click here to use the TSD Power Calculator to find the correct power supply for your application.

Atlas Sound TSD-ML22VCA Features:

  • True VCA For Remote Volume Control of Mic or Line Sources
  • Two (2) Mic/Line Inputs
  • All I/O Via Phoenix Style Connectors
  • High Quality Microphone Preamp with Switchable 24V Phantom Power
  • 12dB/Octave Low Cut Filter @ 125Hz
  • Input Signal & Peak LEDs
  • High Gain Output for Driving Long Balanced Lines
  • Separate Ground Connections
  • Security Covers Included for All Front Panel Controls
  • Energy Efficient

Atlas Sound TSD-ML22VCA Specifications:

  • Input impedance: 1.2 KOhm Balanced, 600 Ohms Unbalanced
  • Phantom Power: 24VDC Defeatable
  • Low Cut Filter: 125Hz/12dB Defeatable
  • Line Input Level: 1V (0dBV) Balanced, 2V (+6dBV) Balanced Output
  • Mic Input Level: 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dbV) Balanced Output
  • Output impedance: 300 Ohms Balanced, 150 Ohms Unbalanced
  • Line Output Level: 1V (0dBV) In = 2V (+6dBV)
  • Mic Output Level: 10mV (-40dBV) In = 80mV (-21dBV)
  • Frequency Response: 20Hz - 20kHz (+/-1dB)
  • THD: 0.06% & 1kHz
  • Signal to Noise Ratio Line to Line: 85dBV
  • Signal to Noise Ratio Mic to Line: 70dBV
  • Signal to Noise Ratio Line to Mic: 55dBV
  • Signal to Noise Ratio Mic to Mic: 55dBV
  • 24VDC Power Requirements: 70mA
  • Dimensions: 1.5" H x 4" W x 2.5" D (3.81 x 10.16 x 6.35 cm)
  • Weight: 6 oz. (0.165 kg)
