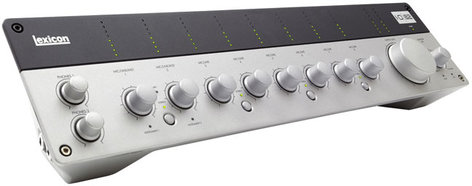

Lexicon I-O 82
8x2 USB 2.0 Desktop Recording Studio

OUR PART #  I-O-82

Our Price: $499.00
List Price: $624.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Lexicon I-O Desktop Recording Series is compatible with any DAW, including Pro Tools 9.  Featuring newly designed dbx® 60V high-voltage, ultra-low noise mic preamps on all 8 channels, the I-O 82 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D – D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

Lexicon's I-O 82 can record eight tracks at once and includes 8 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, 2 hi-Z instrument inputs, 2 high power 1/4" headphone outputs, S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

Features:

  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 Lexicon reverbs
  • dbx high-voltage, ultra-low noise microphone preamps
  • 2 analog combi-jacks for mic/line inputs
  • Zero-latency monitoring
  • Streamlined monitor form factor
  • 1 side panel 1/4" instrument input
  • 2 analog 1/4" TRS outputs
  • Separate source gain control per channel
  • 1 headphone output with dedicated volume adjustment
  • MIDI in and out

Specifications:

  • Combi-Jack Analog Inputs: 8
  • Simult. Recording Sources: 10
  • Microphone Preamps: 8
  • Hi-Z Instrument Inputs: 2
  • Headphone Connections: 2
  • 1/4" TRS Balanced Analog Outputs: 2
  • Microphone Inputs: Female XLR Pin 2 Hot
  • Input Impedance: 3 kOhm balanced
  • Phantom Power: +48 Volts
  • Maximum gain: +55 dB
  • E.I.N. (at max gain): -127 dB @ 55dB gain typical (150O source) -130 dB @ 55dB gain typical A-weighted (150O source)
  • Maximum Input Level: +8 dBu
  • Frequency Response: +/-1.5 dB, 20Hz - 20kHz
  • THD+N: <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, -6 dBu
  • Line Inputs: 1/4" TRS balanced or unbalanced
  • Input Impedance 20 kOhm balanced, 13 kOjm unbalanced
  • Maximum Input Level: +18 dBu
  • Frequency Response: +/-1.5 dB, 20Hz - 20kHz
  • THD+N: <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, +18 dBu
  • Instrument Input 1/4" TS unbalanced
  • Input Impedance: 1 MOhm
  • Maximum Input Level: +10 dBu
  • Frequency Response: +/-2.5 dB, 20Hz - 20kHz
  • THD+N: <0.08%, 1kHz, +4 dBu
  • Line Outputs: 1/4" TRS balanced or unbalanced
  • Level: +18 dBu maximum
  • Impedance: 32 Ohms Balanced, 16 Ohms Unbalanced
  • Headphone Output: 1/4" stereo jack 250mW per channel at 50O
  • MIDI Interface: 5-pin DIN connectors for MIDI in and MIDI out
  • Sample Rate:  44.1, 48, 88.2, or 96 kHz (determined by computer application)
  • Dynamic Range: A/D (24 Bit) 108 dB typical, A-weighted, 20Hz -20kHz
    Dynamic Range: D/A (24 Bit) 110 dB typical, A-weighted, 20Hz -20kHz
    Dynamic Range: A/D/A (24 Bit) 106 dB typical, A-weighted, 20Hz -20kHz
