Product Overview

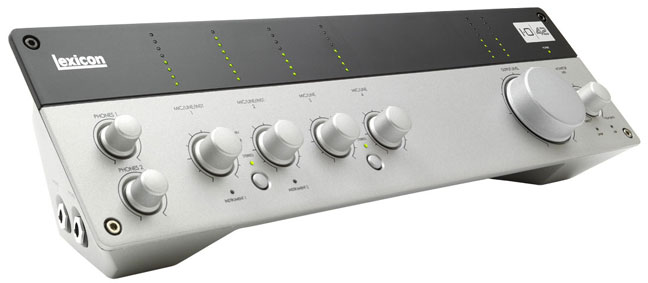

The Lexicon I-O Desktop Recording Series is compatible with any DAW, including Pro Tools 9. Featuring newly designed dbx® 60V high-voltage, ultra-low noise mic preamps on all 4 channels, the I-O 42 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D – D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The I-O 42 can record four tracks at once and includes 4 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, 2 hi-Z instrument inputs, 2 high power 1/4" headphone outputs, S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

Features:

  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 Lexicon reverbs
  • dbx 60V high-voltage, ultra-low noise microphone preamps on all 4 channels
  • Superior sonic performance
  • 4 analog combi-jacks for mic/line inputs
  • 2 analog 1/4" TRS balanced outputs
  • Zero latency monitoring
  • Low latency ASIO drivers
  • Streamlined monitor form factor puts all recording controls at your fingertips
  • Separate level meters and gain control per channel
  • 2 side 1/4" instrument inputs
  • 2 side headphone outputs with dedicated volume adjustment
  • Stereo S/PDIF digital I/O
  • MIDI in and out

Specifications:

  • Combi-jack Analog Inputs: 4
  • Simult. Recording Sources: 6
  • Microphone Preamps: 4
  • Hi-Z Instrument Inputs: 2
  • Microphone Inputs: Female XLR Pin 2 Hot
  • Input Impedance: 3k O balanced
  • Phantom Power: +48 Volts
  • Maximum gain: +55 dB
  • E.I.N. (at max gain) -127 dB @ 55dB gain typical (150O source) -130 dB @ 55dB gain typical A-weighted (150O source)
  • Maximum Input Level: +8 dBu
  • Frequency Response: +/-1.5 dB, 20Hz - 20kHz
  • THD+N: < 0.02%, 20Hz - 20kHz, < 0.002%, 1kHz, -6 dBu
  • Line Inputs: 1/4” TRS balanced or unbalanced
  • Input Impedance: 20k O balanced, 13k O unbalanced
  • Maximum Input Level: +18 dBu
  • Frequency Response: +/-1.5 dB, 20Hz - 20kHz
  • THD+N: < 0.02%, 20Hz - 20kHz, < 0.002%, 1kHz, +18 dBu
  • Instrument Input: 1/4" TS unbalanced
  • Input Impedance: 1M O
  • Maximum Input Level: +10 dBu
  • Frequency Response: +/-2.5 dB, 20Hz - 20kHz
  • THD+N: < 0.08%, 1kHz, +4 dBu
  • Line Outputs: 1/4” TRS balanced or unbalanced
  • Level: +18 dBu maximum
  • Impedance 32 O Balanced, 16 O Unbalanced
  • Headphone Output: 1/4” stereo jack 250mW per channel at 50O
  • MIDI Interface: 5 pin DIN connectors for MIDI in and MIDI out
  • Sample Rate: 44.1, 48, 88.2, or 96 kHz (determined by computer application)
  • Dynamic Range: A/D (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
  • Dynamic Range D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
  • Dynamic Range A/D/A (24 Bit) 106 dB typical, A-weighted, 20Hz - 20kHz
