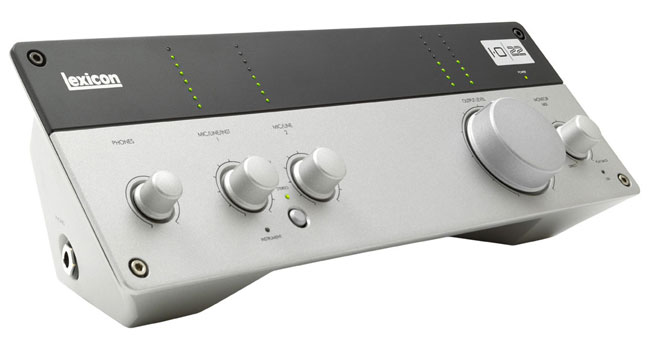

Lexicon I-O-22
2x2 USB 2.0 Desktop Recording Studio

OUR PART #:  I-O-22

The Lexicon I-O Desktop Recording Series is compatible with an DAW, including Pro Tools 9.
Learn More
Our Price: $249.00
List Price: $312.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lexicon I-O-22
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Lexicon I-O Desktop Recording Series is compatible with an DAW, including Pro Tools 9.  Featuring newly designed dbx® 60V high-voltage, ultra-low noise mic preamps on both channels, the I-O 22 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D – D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The I-O 22 can record two tracks at once and includes 2 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, a hi-Z instrument input, a 1/4" high power headphone output, and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

Features:

  • USB 2.0 Desktop Recording Studio
  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 Lexicon reverbs
  • dbx 60V high-voltage, ultra-low noise microphone preamps
  • Superior sonce performance
  • 2 analog combi-jack for mic/line inputs
  • 2 analog 1/4" TRS balanced outputs
  • Zero latency monitoring
  • Low latency ASIO drivers
  • Streamlined monitor form factor for all recording controls
  • Separate level meters and gain control per channel
  • 1 side panel 1/4" instrument input
  • 1 side panel headphone output with dedicated volume adjustment
  • MIDI in and out

Specifications:

  • Microphone Inputs:  Female XLR Pin 2 Hot
  • Input Impedance:  3kO balanced
  • Phantom Power:  +48 Volts
  • Maximum gain:  +58 dB
  • E.I.N. (at max gain):  -125 dBu @ 58dB gain typical (150O source) -129 dBu @ 58dB gain typical A-weighted (150O source)
  • Maximum Input Level:  +21 dBu at minimum gain
  • Frequency Response:  +0/-1 dB, 20Hz - 20kHz
  • THD+N:  <0.006%, 20Hz - 20kHz (mic input to main output) 0 dBu input level, Input knobs at 11 o'clock; <0.003%, 1kHz, +5 dBu input level, Input knobs at minimum, Output knob at max
  • Line Inputs:  1/4" TRS balanced or unbalanced
  • Input Impedance:  20kO balanced, 13kO unbalanced
  • Maximum Input Level:  +32 dBu
  • Frequency Response:  +0/-1.5 dB, 20Hz - 20kHz (reference 1kHz)
  • THD+N:  <0.004%, 20Hz - 20kHz (line input to main output) 0 dBu input level, Input knob at 12 o'clock, Output knob at max
  • Instrument Input:  1/4" TS unbalanced
  • Input Impedance:  1MO
  • Maximum Input Level:  +13 dBu
  • Frequency Response:  +0/-2 dB, 20Hz - 20kHz (instrument input to main output)
  • THD+N:  <0.004%, 20Hz - 20kHz, 0 dBu input level, Input knob at 10 o'clock, Output knob at max
  • Line Outputs:  1/4" TRS balanced or unbalanced
  • Level:  >+18 dBu maximum
  • Impedance:  32O Balanced, 16O Unbalanced
  • Headphone Output:  1/4" stereo jack 350mW per channel at 50O
  • MIDI Interface:  5 pin DIN connectors for MIDI in and MIDI out (5 volt signal)
    Sample Rate:  44.1, 48, 88.2, or 96 kHz (determined by computer application)
  • Dynamic Range:  A/D (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
    (44.1 kHz sample rate)
    D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
    A/D/A (24 Bit) 102 dB typical, A-weighted, 20Hz - 20kHz
