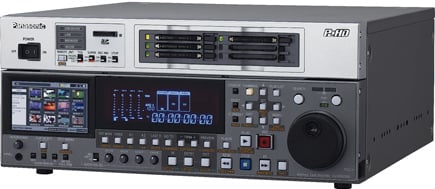

Panasonic AJHPD2500
Rackmount P2 HD Video Recorder/Player

OUR PART #  AJHPD2500

Call for price! Not available online.
List Price: $28,035.00


Panasonic's AJ-HPD2500 P2 HD recorder/player offers full 10-bit, 4:2:2 AVC-Intra and DVCPRO/50/HD recording and playback with extensive production features, versatile connectivity and optional AVCHD transcoding.*

The rack-mountable recorder features multi-format 1080/720 recording, cuts editing, live video up-conversion, 24p time code input, audio/video and IT connectivity – with audio/video feature enhancements tailored for truck and facility operation.

Designed for use in mobile truck, broadcast studio and production facilities, the HPD2500 is equipped with six P2 card slots, a 4.3" LCD display and an editing control panel.  The recorder mounts easily into existing infrastructures of sports trucks and broadcast studios.  The recorder's interface offers a full range of A/V IOs (HD-SDI, composite, SD-SDI out) to support a variety of applications from line and studio recording to editing, transmitting and archiving to synchronizing dailies.  With its eSATA, USB and Giga-bit Ethernet (GigE) connections, the HPD2500 can serve as bridge between file-based systems and existing baseband video workflows.  And now with optional AVCHD compatibility*, users can transcode content to AVCHD for distribution, storage and playback using low-cost SD memory cards.

It supports 1080p, 1080i, 720p HD formats and frame rates including 1080/24p (30p/25p) native recording and 1080/24PsF input/output (in HD-SDI mode), as well as 480i and 576i (DVPRO50/25, DV).  Additional features include digital AES/EBU audio (8-ch), two-channel XLR monitor outputs, enhanced thumbnail display functions, and a remote encoder.

*Transcodes recordings to AVCHD with the AJ-YCX250G option card installed (available for purchase separately).

Features:

  • Up/down/cross conversion functions and real time up-conversion of live video inputs
  • Full-frame rate playback from external disk drives (via eSata)
  • Expanded I/O interfaces: HD-SDI input/output, analog component/composite and audio, high-speed eSATA and USB2.0, Giga-bit Ethernet (GigE), plus compatible AES Digital audio inputs/outs
  • Solid-state recording features such as clip exchange, multiple clip selection, undo/redo last action, auto record, loop record, and text memo
  • New clip thumbnail display functions including one-clip remote playback, thumbnail display during playback (edit while watching an external monitor), fixed display mode that allows you to observe a thumbnail when on-air
  • 50Hz/60Hz switchable
  • RS422 remote control, RS-232C and encoder remote controls
  • Larger 4.3" LCD monitor displays both source and record windows, waveform monitor and vectorscope
  • Jog and shuttle dial with up to 100X forward/reverse speed, audio faders, assignable user files
  • SD card slot
  • 4U-size body fits into a 19" rack
  • Optional AJ-YCX250G AVCHD option card sold separately*
  • 5-year warranty (1-year regular, plus 4 years extended upon product registration)

NOTE: For more information and specifications, please consult the brochure located under the "documents" tab.

Click to download

Panasonic AJHPD2500
Rackmount P2 HD Video Recorder/Player

OUR PART #  AJHPD2500

Product Information:

Panasonic's AJ-HPD2500 P2 HD recorder/player offers full 10-bit, 4:2:2 AVC-Intra and DVCPRO/50/HD recording and playback with extensive production features, versatile connectivity and optional AVCHD transcoding.*

The rack-mountable recorder features multi-format 1080/720 recording, cuts editing, live video up-conversion, 24p time code input, audio/video and IT connectivity – with audio/video feature enhancements tailored for truck and facility operation.

Designed for use in mobile truck, broadcast studio and production facilities, the HPD2500 is equipped with six P2 card slots, a 4.3" LCD display and an editing control panel.  The recorder mounts easily into existing infrastructures of sports trucks and broadcast studios.  The recorder's interface offers a full range of A/V IOs (HD-SDI, composite, SD-SDI out) to support a variety of applications from line and studio recording to editing, transmitting and archiving to synchronizing dailies.  With its eSATA, USB and Giga-bit Ethernet (GigE) connections, the HPD2500 can serve as bridge between file-based systems and existing baseband video workflows.  And now with optional AVCHD compatibility*, users can transcode content to AVCHD for distribution, storage and playback using low-cost SD memory cards.

It supports 1080p, 1080i, 720p HD formats and frame rates including 1080/24p (30p/25p) native recording and 1080/24PsF input/output (in HD-SDI mode), as well as 480i and 576i (DVPRO50/25, DV).  Additional features include digital AES/EBU audio (8-ch), two-channel XLR monitor outputs, enhanced thumbnail display functions, and a remote encoder.

*Transcodes recordings to AVCHD with the AJ-YCX250G option card installed (available for purchase separately).

Features:

  • Up/down/cross conversion functions and real time up-conversion of live video inputs
  • Full-frame rate playback from external disk drives (via eSata)
  • Expanded I/O interfaces: HD-SDI input/output, analog component/composite and audio, high-speed eSATA and USB2.0, Giga-bit Ethernet (GigE), plus compatible AES Digital audio inputs/outs
  • Solid-state recording features such as clip exchange, multiple clip selection, undo/redo last action, auto record, loop record, and text memo
  • New clip thumbnail display functions including one-clip remote playback, thumbnail display during playback (edit while watching an external monitor), fixed display mode that allows you to observe a thumbnail when on-air
  • 50Hz/60Hz switchable
  • RS422 remote control, RS-232C and encoder remote controls
  • Larger 4.3" LCD monitor displays both source and record windows, waveform monitor and vectorscope
  • Jog and shuttle dial with up to 100X forward/reverse speed, audio faders, assignable user files
  • SD card slot
  • 4U-size body fits into a 19" rack
  • Optional AJ-YCX250G AVCHD option card sold separately*
  • 5-year warranty (1-year regular, plus 4 years extended upon product registration)

NOTE: For more information and specifications, please consult the brochure located under the "documents" tab.

Click to download
