Panasonic BTLH910GJ
9" HD/SD LCD Monitor 15:0 EVF


Our Price: $2,995.00
List Price: $3,705.00
You save 19%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

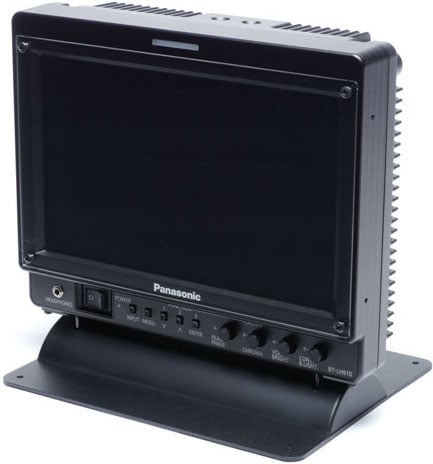

Panasonic's BTLH910GJ is a high-performance, portable 9" LCD monitor with an IPS LCD panel that boasts best-in-class 1280 x 768 WXGA pixel resolution.  Great for field and studio applications, the LH910 can be utilized on-camera as an electronic viewfinder, on location, in mobile vehicles or for live settings.  With 176 degree vertical and horizontal viewing angles, the widest offered by any LCD display, the LH910 delivers exceptional imagery and superb color accuracy, and professional interfaces including HDMI and 3G-SDI.

The LH910 further demonstrates its versatility with newly-developed 3D assist functions, including a 2x SDI IN overlay and side-by-side display to provide a 2D view of various 3D checks, including composition, convergence, color, luminance, focus, zoom, and parallax.  These 3D assist functions are invaluable for production crews that require 3D review in the field when using a 3D rig system.


  • 1280 x 768 Resolution (WXGA)
  • IPS (in-plane switching) panel with LED backlight for high color accuracy, superb contrast and wide viewing angles
  • Displays multiple HD/SD formats
  • High brightness (350cd /m2)
  • High contrast (1000:1)
  • 10-bit image processing uses a 3D LUT for each RGB color for faithful color reproduction
  • Advanced Focus Assist Functions: Focus-in-Red and Pixel-to-Pixel matching
  • Closed Caption and Time Code Display
  • Built-in waveform monitor and vectorscope to display the input signal waveform and color gamut.
  • BLACK mode for confirming dark scenes
  • RGB direct white balance adjustment
  • Color audio level meter
  • Mirror function simplifies the basic adjustments of a 3D camera rig
  • Weight: 3.7 lbs
  • Aspect Ratio: 15:9
  • Displays various markers in both 16:9 and 4:3 aspect ratios (Safe Area Marker and Center Marker)
  • Display Functions include: Cross Hatch Overlay, HV Delay Display: black-and-white Mode, Split Screens
  • Display Colors: Approx. 16,770,000 colors
  • Viewing Angle: 176┬░ both of horizontal and vertical
  • Video Input: Video: BNC x 1
  • Headphone Output: M3 stereo mini jack x 1
  • Tilt stand included
  • Eco-friendly with a W-LED backlight
  • Rear tally light
  • Headphone terminal

NOTE: For more information and specifications, please consult the brochure located under the "documents" tab.
