MicW i436

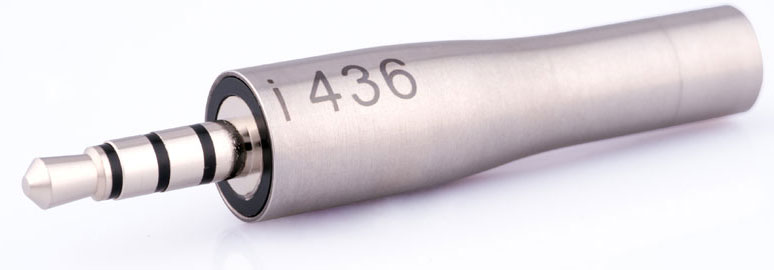

Miniature Measurement Microphone for iOS

OUR PART #:  I436

The i436 is a calibrated measurement microphone complying with the IEC 61672 Class 2 sound level meter standard.
Learn More
Our Price: $119.00
List Price: $145.00
You save 18%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MicW i436
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The i436 is a calibrated measurement microphone complying with the IEC 61672 Class 2 sound level meter standard. The sensitivity and frequency response of each microphone is individually calibrated at the factory before shipping. With the i436 and a dedicated App, you can turn your iPhone and iPad into a sound pressure level (SPL) meter or a real time analyzer (RTA) for time and frequency domain measurements. The i436 omnidirectional microphone houses outstanding performance in a small package. Durable and easily carried in your pocket, the i436 measures your vocals, instruments, and live sounds accurately without distortion, all on your mobile device.

Specifications:

  • Type:  Electret Condenser
  • Capsule diameter:  7.0 mm (can be calibrated)
  • Principe of operation:  Pressure
  • Polar Pattern:  Omnidirectional
  • Sensitivity(┬▒3dB):  -44 dB (6.3mV/Pa)
  • Frequency Response:  20 Hz~20kHz
  • S/N ratio:  More than 62dB
  • Impedance:  Less than 2.2k
  • Power Source:  Plug-in power capability, Plug and play
  • Operating Temperature:  -20 Degrees C ~ +50 Degrees C
  • Length:  50mm
  • Weight:  8g
  • Connector:  3.5mm 4-Pole headset interface
2M Cable for i436, i456 Microphone
MicW 2M-CABLE-I436 2M Cable for i436, i456 Microphone
MicW's 2M-CABLE-I436 is a 2 meter long cable for use with their i436 or i456 mics.
13.97 18.00 22
