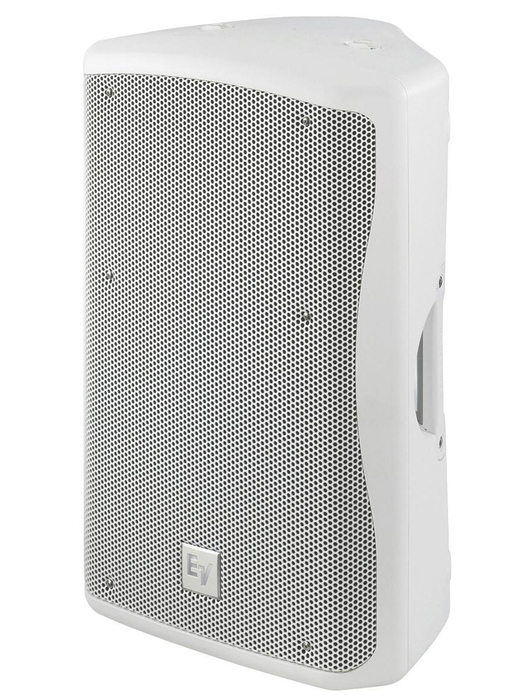

Electro-Voice ZXA1
120V White Amplified Speaker with 90°x50° Coverage Pattern

OUR PART #:  ZXA1-90W-120V

Electro-Voice's ZXA1 is a self-powered version of the ZX1 compact two-way loudspeaker.
Learn More
Our Price: $650.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice ZXA1
Qty:
In Stock

Similar Products

Electro-Voice's ZXA1 is a self-powered version of the ZX1 compact two-way loudspeaker. The ZXA1 is powered by an 800 watt amplifier module derived from EV's world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels.

Electro-Voice ZXA1 Features:

  • Color: White
  • Designed for Club Sound, Concert Sound, and other applications
  • Integrated 800W power amplifier
  • Biamplified design with transducer protection
  • EV8L 8” high-output LF transducer
  • DH2005 1” exit true compression driver
  • 90° x 50° coverage pattern
  • Rotatable horn design
  • 123 dB maximum SPL
  • Selectable high-pass filter for use with subwoofers
  • Line and microphone inputs
  • Integral monitor angle on enclosure
  • Built-in pole mount
  • Lightweight (< 20 lbs) with integral handle for easy carrying

Electro-Voice ZXA1 Specifications:

  • Input Connections:  XLR and TRS Combo; XLR with Independent Gain
  • Power Requirement:
    • 120V: 95V - 132V, 50 - 60 Hz, 0.6A;
    • 230V: 190V - 264V, 50 - 60 Hz, 0.4A
  • Frequency Response (-3 dB):  60 Hz - 20 kHz Hz Full Range Mode
  • Frequency Response (-10 dB):  48 Hz - 20 kHz Hz Full Range Mode
  • Recommended High-Pass Frequency:  100 Hz User Selectable
  • Max. SPL/1m (calc):  123 dB
  • LF Transducer:  EV8L, 8" (203mm) Driver
  • HF Transducer:  DH2005, 1" (25mm) Exit Compression Driver
  • Crossover Frequency:  1800 Hz
  • Enclosure Material:  High Impact Polystyrene
  • Grille:  Polyester Powder Coated, 18GA Galvanized Steel
  • Dimensions (HxWxD): 17.99" x 11.1" x 10.39"
  • Weight:  19 lbs.
