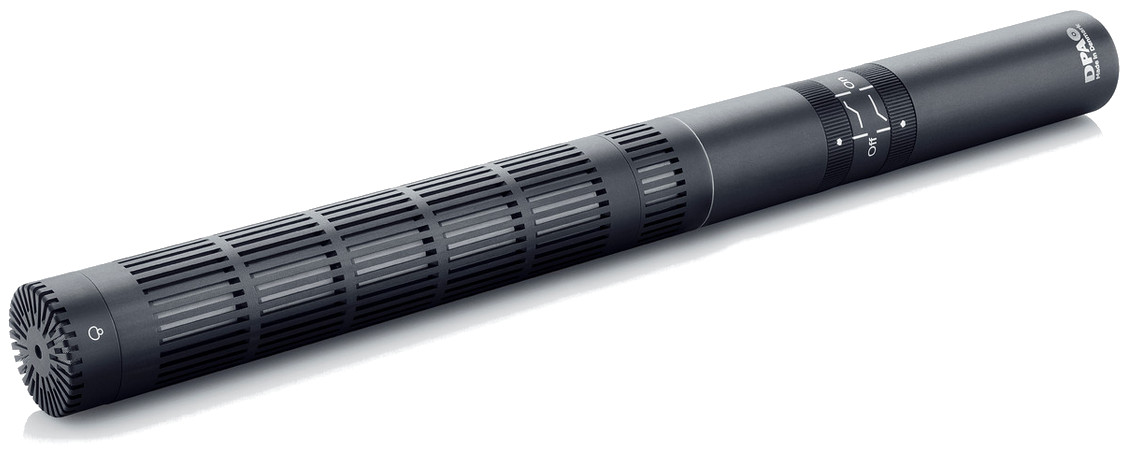

DPA 4017B Phantom-Powered Supercardioid Shotgun Mic

Equipped with a highly directional supercardioid pickup pattern, obtained using a supercardioid design with an interference tube that provides excellent off-axis rejection, the DPA Microphones 4017B shotgun microphone is short and lightweight. Designed for a broad range of applications, the phantom-powered 4017B is great for use with camera systems, in fixed positions at sports facilities, for broadcast/ENG/film booming, and studio recording environments.

Extensive research and development has been undertaken to optimize the sound coming from the sides and behind the microphone. Minimizing the often very un-linear response of a shotgun microphone due to its side lobes is one of the key accomplishments of the 4017B. The condenser capsule uses a high voltage pre-polarized back plate, endowing the shotgun with high output as well as wide dynamics, extremely low noise and distortion specifications.

At just 210 mm (8.3") in length and 68 g (2.4 oz) in weight, the aluminum-bodied DPA 4017B is among the smallest and lightest boom microphones available. Fully immune to RF emission, the 4017B's 19 mm (0.75") condenser cartridge is capable of handling peak SPLs of 152 dB before clipping.

The 4017B features two onboard filters that are activated via a switching ring design. With the simple twist of two sturdy rings, engineers can implement a high-frequency boost that adds a 4 dB shelf at 8 kHz and a first-order bass roll-off below 120 Hz to minimize handling and wind noise. A permanent third-order high-pass filter at 50 Hz effectively removes unwanted low frequency disturbance from handling and wind noise.

DPA 4017B Specifications:

• Directional characteristics: Supercardioid, lobe-shaped
• Principle of operation: Pressure gradient, with interference tube
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz
• Frequency range, ± 2 dB, at 60 cm: 70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
• Sensitivity, nominal ± 2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 24 dB (max. 26 dB)
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 80 dB(A)
• Total Harmonic Distortion (THD): < 1 % up to 133 dB SPL peak
• Dynamic range: Typ. 119 dB
• Max. SPL, peak before clipping: 138 dB
• Filters:
  • High boost: +4 dB at 8 kHz.
  • Low cut: First order filter, below 120 Hz
• Output impedance: < 150 ohm
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Signal balanced
• Common Mode Rejection Ratio (CMRR): > 40 dB
• Power supply: 48 V Phantom power (± 4 V)
• Current consumption: 4.5 mA
• Connector: XLR-3M
  • Pin 1: shield
  • Pin 2: signal + phase
  • Pin 3: signal - phase
• Color: Matte black
• Weight: 68 g (2.4 oz)
• Microphone diameter: 19 mm (0.75")
• Capsule diameter: 19 mm (0.75")
• Microphone length: 212 mm (8.3")
• Output voltage, RMS: > 1.8 V
• Polarity: +V at Pin 2 for positive sound pressure
• Temperature range: -40 °C to 45 °C (14 °F to 113 °F)
• Relative Humidity (RH): Up to 90 %
