Philips Color Kinetics 103-000024-00 SmartJack Pro
USB to DMX Converter

OUR PART #  103-000024-00

Our Price: $309.00
(Low Price Guarantee)
Please call for availability.

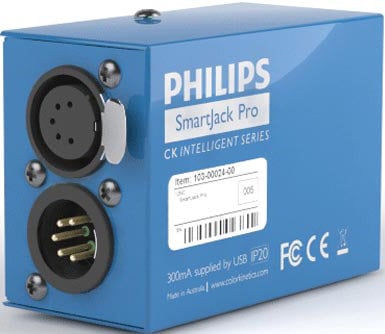

Philips Color Kinetics' SmartJack Pro is a USB-to-DMX converter that enables control of your DMX-based lighting installation from a computer.  Combined with QuickPlay Pro software, SmartJack Pro lets you assign and test light addresses, configure and test DMX addresses, and author basic light shows.  SmartJack Pro is compatible with all Philips CK Intelligent Series color changing lighting fixtures.

Philips Color Kinetics 103-000024-00 SmartJack Pro Includes:

  • SmartJack Pro controller
  • USB cable
  • One XLR to RJ45 adapter
  • QuickPlay Pro Software CD
  • Installation instructions

Philips Color Kinetics 103-000024-00 SmartJack Pro Features:

  • Easy to use – Connects to any Windows® PC or Mac viaUSB connection.
  • Ultra-compact design –Weighs less than one pound andhas a form factor of 1.58" x 2.27" x 3.03" (40 x 58 x 77 mm).
  • Bundled with QuickPlay Pro software – QuickPlay Proallows light addressing, DMX addressing, light testing, power / data supplyconfiguration, basic show authoring, and more.
  • Import / export light address files – QuickPlay Prosupports import and export of comma-separated light address files.
  • Automatic controller and fixture detection –QuickPlay Pro automatically detects all connected controllers and fixtures.
  • Four built-in, configurable effects – Create basiclight shows using the fixed color, color wash, sweep, and streak effects.
  • Additional options with QuickPlay Pro – When connected to an Ethernetnetwork, QuickPlay Pro can address Ethernet-based fixtures. QuickPlay Pro isalso compatible with iPlayer 3 for added DMX control and light addressingoptions.

Philips Color Kinetics 103-000024-00 SmartJack Pro Specifications:

  • Power Requirement: 300 mA input voltage supplied byUSB
  • Computer Interface Cable: USB 2.0, USB 1.2
  • Lighting System Network Interface:
    - Network Protocol: DMX512
    - DataConnector: 5-pin XLR*
    *One XLR to RJ45 adapter isincluded
  • Software Compatibility: QuickPlay Pro**
    **Philips QuickPlay Pro lightaddressing software is included with SmartJack Pro or is downloadable at www.colorkinetics.com/support/addressing/
  • Supported DMX Channels; Full 512-channel universe ofinput or output
  • Dimensions: 1.58" H x 2.27" W x 3.03" D (40x 58 x 77 mm)
  • Weight: 0.66 lbs (0.29 kg)
  • Operating Temperature: 32° – 122° F (0° – 50° C)
  • Humidity: 0 – 95%, non-condensing
  • Certification: FCC Class A, CE
  • Environment: Dry Location, IP20

Philips Color Kinetics 103-000024-00 SmartJack Pro
USB to DMX Converter

OUR PART #  103-000024-00

Product Information:

Philips Color Kinetics' SmartJack Pro is a USB-to-DMX converter that enables control of your DMX-based lighting installation from a computer.  Combined with QuickPlay Pro software, SmartJack Pro lets you assign and test light addresses, configure and test DMX addresses, and author basic light shows.  SmartJack Pro is compatible with all Philips CK Intelligent Series color changing lighting fixtures.

Philips Color Kinetics 103-000024-00 SmartJack Pro Includes:

  • SmartJack Pro controller
  • USB cable
  • One XLR to RJ45 adapter
  • QuickPlay Pro Software CD
  • Installation instructions

Philips Color Kinetics 103-000024-00 SmartJack Pro Features:

  • Easy to use – Connects to any Windows® PC or Mac viaUSB connection.
  • Ultra-compact design –Weighs less than one pound andhas a form factor of 1.58" x 2.27" x 3.03" (40 x 58 x 77 mm).
  • Bundled with QuickPlay Pro software – QuickPlay Proallows light addressing, DMX addressing, light testing, power / data supplyconfiguration, basic show authoring, and more.
  • Import / export light address files – QuickPlay Prosupports import and export of comma-separated light address files.
  • Automatic controller and fixture detection –QuickPlay Pro automatically detects all connected controllers and fixtures.
  • Four built-in, configurable effects – Create basiclight shows using the fixed color, color wash, sweep, and streak effects.
  • Additional options with QuickPlay Pro – When connected to an Ethernetnetwork, QuickPlay Pro can address Ethernet-based fixtures. QuickPlay Pro isalso compatible with iPlayer 3 for added DMX control and light addressingoptions.

Philips Color Kinetics 103-000024-00 SmartJack Pro Specifications:

  • Power Requirement: 300 mA input voltage supplied byUSB
  • Computer Interface Cable: USB 2.0, USB 1.2
  • Lighting System Network Interface:
    - Network Protocol: DMX512
    - DataConnector: 5-pin XLR*
    *One XLR to RJ45 adapter isincluded
  • Software Compatibility: QuickPlay Pro**
    **Philips QuickPlay Pro lightaddressing software is included with SmartJack Pro or is downloadable at www.colorkinetics.com/support/addressing/
  • Supported DMX Channels; Full 512-channel universe ofinput or output
  • Dimensions: 1.58" H x 2.27" W x 3.03" D (40x 58 x 77 mm)
  • Weight: 0.66 lbs (0.29 kg)
  • Operating Temperature: 32° – 122° F (0° – 50° C)
  • Humidity: 0 – 95%, non-condensing
  • Certification: FCC Class A, CE
  • Environment: Dry Location, IP20
