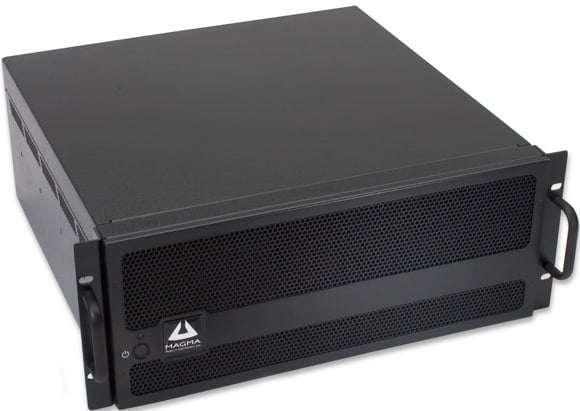

Magma PE6R4-I
6-Slot PCI Express x8-to PCI-X Expansion System

OUR PART #:  PE6R4-I

The Magma PCI Express-to-PCI Expansion System provides a simple, cost-effective solution for expanding the capability of your PCI Express based computer.
Learn More
Our Price: $2,492.75
List Price: $2,499.00
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Magma PE6R4-I
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Magma PCI Express-to-PCI Expansion System provides a simple, cost-effective solution for expanding the capability of your PCI Express based computer. As computer manufacturers migrate to PCI Express, the number of available PCI slots has been reduced or completely eliminated. However,many companies have invested a substantial amount of capital on solutions built around conventional PCI and PCI-X hardware. The Magma PCIe to PCI-X expansion system provides a "migration path" to PCI Express while protecting your PCI hardware investment.

The Magma PCI Express-to-PCI Expansion System is designed to match the through-put required by the majority of PCI cards on the market today.The expansion chassis contains six PCI-X slots which are connected to the host computer through a 8 lane (x8) PCI Express host interface card and a high-performance cable.

The Magma PCI Expansion solution provides a cost-effective migration path to new PCI Express-based computers while maintaining a consistent PCI configuration. In addition, Magma products significantly increase Input/Output (I/O) capacity and scalability. Multiple expansion systems can be combined to provide an almost unlimited number of PCI slots* to a single computer. This type of scalability is especially useful in industries such as Telecom, Data Acquisition, Video Monitoring, Server Storage and Manufacturing Test Fixtures.
*As defined by the PCI Local Bus Specification, the theoretical maximum per computer is 255 PCI buses.

The Magma 6 Slot PCI Express-to- PCI Expansion System consists of a x8 PCI Express host card, a high-speed iPass cable and a PCI(x) expansion chassis. The host card relays signals from the PCI Express slot inside the computer motherboard to a PCI(x) backplane inside the expansion chassis. The system is automatically configured by the system BIOS and all six high-performance PCI(x) slots within the expansion chassis appear transparent to the host computer.

NOTE: Please note that PCI and PCI-X are backwards compatible.

Benefits:

  • Provides a link from PCI Express-based computers to legacy PCI hardware
  • Cost effective solution for adding an unlimited number of PCI slots to PCIExpress-based computers and servers
  • Ideal migration path to small form factor servers,while maintaining aconsistent PCI hardware configuration
  • Substantially increase I/O capacity
  • Supports universal and 3.3V PCI and PCI-X cards
  • Multiple expansion systems can be used with a single computer

Magma PE6R4-I Features:

  • Easy Plug and Play installation
  • Visible LEDs indicate correct installation
  • Includes one 3-meter iPass cable
  • 6-slot PCI-X backplane
  • All slots support full-length PCI(x) cards
  • 4U, black rack-mount enclosure
  • ATX form factor allows backplane to be used indifferent types of enclosures
  • Supports spread spectrum clocking
  • 400W Standard or 400W Hot-Swappable Redundant PowerSupply
  • Dedicated fan for cooling PCI cards
  • Optional PCI card hold down mechanism prevents cardsfrom being dislodged during transportation
  • Optional drive cage for mounting up to eight internaldrives inside chassis
  • Optional Chassis Trak® rack slide kit for rackcabinet installation
  • CE certified and FCC Class A verified
  • 30 Day Money Back Guarantee

Magma PE6R4-I Specifications:

  • Backplane:
    • 6 PCI-X slots (66MHz)
    • PCI Local Bus Specification: Revision 2.3
    • PCI Bridge Architecture Specification: Revision 1.2
  • Cable: 3-meter iPass cable
  • Interconnect Bandwidth: 512 MB/sec (Theoretical Max.of PCI 64/66)
  • Enclosure:
    • 4U Black Rack-mount
    • Dimensions (WxHxD): 19"x 7"x 17.7"
    • Removable/cleanable air filter
    • 24 lbs or 11.804 kg
    • Class A FCC Emissions
  • SystemCooling:
    • One large 82.5 CFM backplane fan
    • One fan in power supply
  • Host Connection:
    • PCI Express Host card (x8) for standard height or low-profile slots
    • Dimensions (H x L) 2.7" x 3.2" (69 x 81 mm)
    • PCI Express Bus Specification: Revision 1.0a
  • Host Card Power Consumption: 0.15A @ +3.3V maximum
  • Rack Installation:
    • Optional Chassis Track® rackside kit
    • Optional PCI card hold down kit
  • Hard-Drive Support: Optional Drive Cage
  • Chassis PowerSupply:
    • *Standard or Redundant Power Supply Available
    • Auto-Switching from 110 - 220V
    • Contact Magma for Current Specifications
  • Environmental:
    • Ambient Temperature: 0º to 50º C
    • Storage Temperature: -20º to 60º C
    • Relative Humidity: 5% to 85%,
    • Non-condensing
  • MTBF: 100,000 hours
  • Regulatory Compliance:
    • FCC Class AVerified
    • CE Certified
    • UL/CUL Listed
    • Supported Operating
  • Supported Operating Systems:
    • Windows 7 (32bit/64bit)
    • Windows Vista (32bit/64bit)
    • Windows XP (32bit/64bit)
    • Windows Server 2003 (32bit)
    • Windows Server 2008 (32bit/64bit)
    • Mac OS 10.4+
    • Red Hat Linux 2.6x+
    • Solaris
