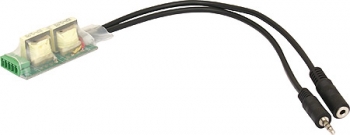

Altinex SC206-204
Passive Unbalanced to Balanced Audio Adapter

OUR PART #:  SC206-204

Altinex's SC206-204 is an audio adapter that converts unbalanced audio signals to balanced audio.
Learn More
Our Price: $49.92
List Price: $52.00
Write the first review.
Altinex SC206-204
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Altinex's SC206-204 is an audio adapter that converts unbalanced audio signals to balanced audio.  The converted signals provide better sound quality and greatly reduce noise over long transmission lengths.  This is a passive device that may also be used to convert balanced signals to unbalanced signals as well.

The SC206-204 is designed to convert standard computer audio output to balanced audio.  It has an excellent bandwidth and is ideal for most commercial-user applications.  Since the SC206-204 is a passive device, there is no need for an external power source.  Simply make the audio connections and it is ready to go.

Altinex SC206-204 Includes:

  • 1x Altinex SC206-204 passive unbalanced to balancedaudio adapter
  • 1x 5-pin female terminal block connector for output mating

Altinex SC206-204 Features:

  • Compact
  • Easy to use
  • Requires no external power
  • Improves signal quality
  • Reduces noise
  • Bi-directional
  • For commercial use

Altinex SC206-204 Specifications:

  • Inputs: 1x 3.5mm male
  • Main output: 1x 5-pin male terminal block
  • Local output: 1x 3.5mm female
  • Compatibility: SC206-201 or SC206-203
  • Standard PC application or home theater
  • Input signals:
    • Impedance: 600 ohms
    • Max Level: 3 dBu
  • Output Signals:
    • Gain*: 0 dB +/- 0.3 dB
    • Impedance: 600 ohms
    • Response: 200 Hz - 15 kHz
    • Max Power: 100 mW
      *The gain is measured at the output of a high impedance differential receiver
  • Material: FP-301 tubing
  • Color: clear
  • Dimensions: 0.8" H x 1.3" W x 2.5" D (20 x 33 x 64mm)
  • Weight: 0.2 lb (0.1 kg)
  • Shipping Weight: 0.6 lb (0.3 kg)
  • Operating temperature: 10 to 40 degrees C
  • Maximum temperature: 0 to 50 degrees C
  • Humidity: 90% non-condensing
  • MTBF (calculations): 40,000 hours
