Marshall Electronics V-MD702-3GSDI
Dual LCD Monitor Rackmount Unit with 2x 3GSDI Inputs & Loop-Through

OUR PART #:  V-MD702-3GSDI

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration.
Learn More
Our Price: $2,573.75
List Price: $3,028.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-MD702-3GSDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration.  These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements.  This eliminates the need to upgrade or replace equipment when a different input or application is required.  This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

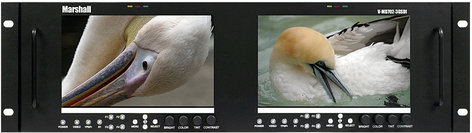

The V-MD702-3GSDI offers two 800 x 480 LED-backlit LCDs in one single configuration, along with excellent viewing angles.  The V-MD702-3GSDI includes Composite and Component loop-through, along with 3G-SDI Input Modules with loop-through.  Other major features include Status Display, False Color Filter, IMD (In-Monitor Display), Network Control, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, user-definable function buttons, and more.  A variety of modules are available including two-channel HD-SDI with switched output, Fiber-Optic input/output modules, and more.

Marshall's MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD-SDI transmission input/output modules.  These fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.

Specifications:

  • Display (Viewing Area): 7" x 2
  • Resolution (Pixels): 800 x 480
  • Aspect Ratio: 16:10
  • Pixel Pitch (h x v): 0.1905 mm x 0.1905 mm
  • Brightness (in cd/m²): 450
  • Contrast Ratio: 600:1
  • Standard Inputs: Composite, Component, 3G-SDI
  • Available # of Optional Input Slots: 1 (per screen)
  • Dimensions: 18.9" W x 5.2" H x 1.2" D
  • Weight: 5 lbs.
  • Power Consumption: 3 Amp @ 12VDC
