Blackmagic Design Pocket UltraScope
PC Waveform Monitoring via USB 3.0

OUR PART #:  POCKET-ULTRASCOPE

Blackmagic UltraScope is the first broadcast-accurate PC-based scope in a user-friendly design.
Learn More
Our Price: $595.00
Write the first review.
Blackmagic Design Pocket UltraScope
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Blackmagic UltraScope is the first broadcast-accurate PC-based scope in a user-friendly design! UltraScope includes everything you need for an accurate professional solution you can trust. UltraScope is perfect for master monitoring, edit suites, color correction, equipment rooms and engineering.

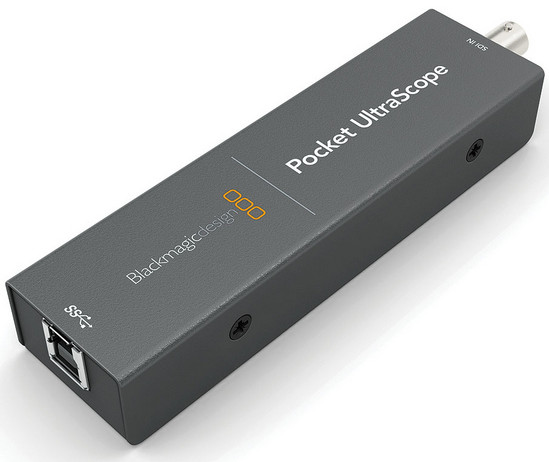

Get all the incredible features of UltraScope on your laptop! Pocket UltraScope includes the same fantastic UltraScope software combined with a miniature pod that converts 3 Gb/s SDI to the computer's USB 3.0 connection. Pocket UltraScope simply plugs in and is accurate and portable, so you can bring UltraScope to the most remote locations. Pocket UltraScope automatically detects between SD, HD and 3Gb/s HD-SDI video standards, and is powered from the laptop battery via the USB 3.0 port so you don’t need a power source when on location

NOTE: At time of posting, this product supports Windows based machines only.  A Renesas Electronics USB 3.0 Host Controller is required.  Full Compass strongly recommends having our Integration Department help you configure this USB 3.0 card to match your system to ensure compatibility.

Specifications:

  • SDI Video Input: 1x 10-bit SD, HD and 3 Gb/s HDswitchable.
  • SDI Video Output: None
  • Optical Fiber Video Input: None
  • Optical Fiber Video Output: None
  • Optical Fiber Audio Input: None
  • Optical Fiber Audio Output: None
  • SDI Audio Input: 8 channel embedded in SD and HD.
  • SDI Audio Output: None
  • Multiple Rate support: Standard definition SDI,high definition SDI and 3 Gb/s high definition SDI.
  • Supported Video Formats: 525i NTSC, 625i PAL,720HD and 1080HD.
  • SD Format Support: 625/25 PAL and 525/29.97 NTSC.
  • HD Format Support: 1080p 23.98/24/50/59.94,1080i50, 1080i59.94, 720p50 and 720p59.94.
  • SDI Compliance: SMPTE 424M, 259M and 292/296M.
  • SDI Metadata Support: VITC and RP-188 timecode.
  • Video Sampling: 4:2:2
  • Audio Sampling: Television rate of 48kHz and 24bit.
  • Color Precision: 10-bit
  • Color Space: 4:2:2 YUV
  • Computer Interface: USB 3.0. Requires a computerwith a USB 3.0 interface. Will not work with USB 2.0.
  • Colorspace Conversion Hardware-based real time.
  • Software Included: Blackmagic UltraScope andBlackmagic UltraScope driver.
  • Firmware Upgrade: Firmware built into softwaredriver. Loaded at system start or via updater software.
  • Installation: USB 3.0. Please see the full systemrequirements for Windows™.
  • Product Warranty: 3 Year Limited Manufacturer's Warranty.
