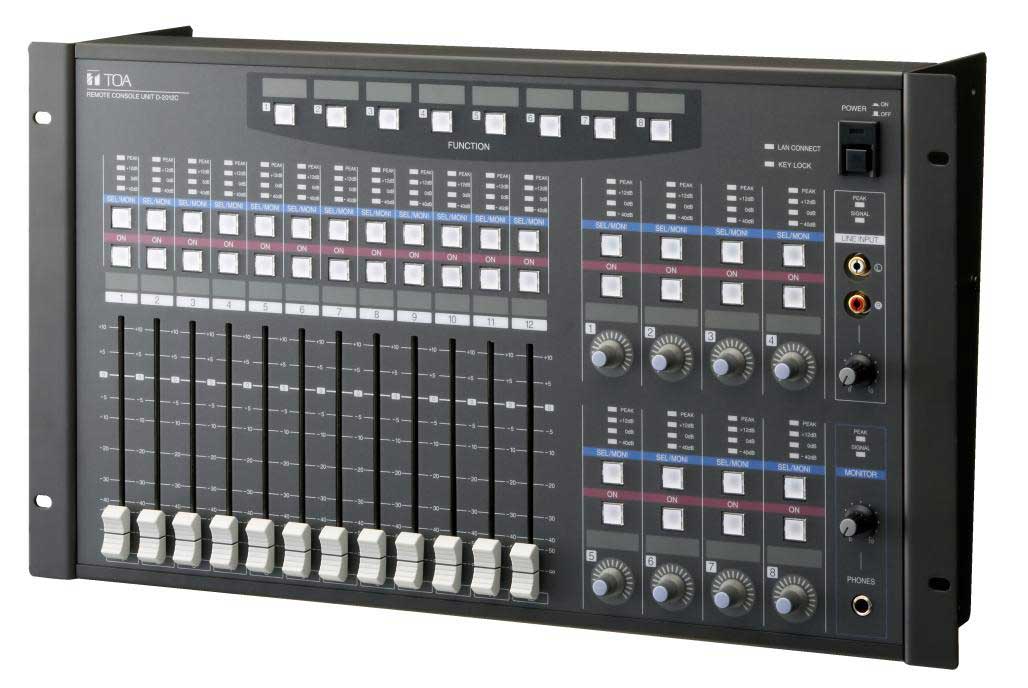

TOA D-2012C
Digital Fader Controller

OUR PART #  Q-D-2012C

Our Price: $4,448.65
List Price: $5,505.20
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C's 12 motorized faders and 8 rotary encoders can remotely adjust their volumes. Desired preset memories can be reacalled using 8 function keys. It is equipped with 1 channel line input (stereo), which allows the audio signal to be transmitted to the D-2008SP via monitor bus. Audio signals inside the D-2008SP can be monitored via monitor bus through headphones connect to  a stereo headphone output. The D-2012C can be installed on a desk with the additional use of an optional D-2012AS Console Case.

SPECIFICATIONS

  • Power Source: 120VAC
  • Power Consumption: 18W
  • Volume Adjustment: 100mm motorized fader x 12, Rotary encoder x 8
  • Line Input: 1 channel (stereo), +10 to -20dB, 10kOhms, unbalanced, RCA Pin-jack
  • Headphone Output: Stereo 100mW + 100mW (32 Ohm load), standard stereo phone-jack
  • Monitor Bus: 1 stereo input, 1 stereo output // Connector RJ45 connector // Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable (2 pairs of data lines) maximum cable distance: 100m (between D-2012C and D-2008SP)
  • LAN: Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) // RJ45 connector, Connected via a switching hub // Network protocol: TCP/IP // Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable // Maximum cable distance: 100m (between D-2008SP and switching hub)
  • Control: RS-232C: D-sub connector (9 pins) for maintenance use
  • Finish: Panel: Surface treated steel plate, laminated with polycarbonate sheet, gray, matte // Rack mounting bracket: Surface-treated steel plate, gray, matte.
  • Dimensions: 18.98" x 10.47" x 5.43"
  • Weight: 14.55lbs



TOA D-2012C
Digital Fader Controller

OUR PART #  Q-D-2012C

Product Information:

The D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C's 12 motorized faders and 8 rotary encoders can remotely adjust their volumes. Desired preset memories can be reacalled using 8 function keys. It is equipped with 1 channel line input (stereo), which allows the audio signal to be transmitted to the D-2008SP via monitor bus. Audio signals inside the D-2008SP can be monitored via monitor bus through headphones connect to  a stereo headphone output. The D-2012C can be installed on a desk with the additional use of an optional D-2012AS Console Case.

SPECIFICATIONS

  • Power Source: 120VAC
  • Power Consumption: 18W
  • Volume Adjustment: 100mm motorized fader x 12, Rotary encoder x 8
  • Line Input: 1 channel (stereo), +10 to -20dB, 10kOhms, unbalanced, RCA Pin-jack
  • Headphone Output: Stereo 100mW + 100mW (32 Ohm load), standard stereo phone-jack
  • Monitor Bus: 1 stereo input, 1 stereo output // Connector RJ45 connector // Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable (2 pairs of data lines) maximum cable distance: 100m (between D-2012C and D-2008SP)
  • LAN: Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) // RJ45 connector, Connected via a switching hub // Network protocol: TCP/IP // Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable // Maximum cable distance: 100m (between D-2008SP and switching hub)
  • Control: RS-232C: D-sub connector (9 pins) for maintenance use
  • Finish: Panel: Surface treated steel plate, laminated with polycarbonate sheet, gray, matte // Rack mounting bracket: Surface-treated steel plate, gray, matte.
  • Dimensions: 18.98" x 10.47" x 5.43"
  • Weight: 14.55lbs
