TOA D-2000DA1
Output Module, 4 Bal Line Outs

OUR PART #:  D2000DA1

Our Price: $460.97
List Price: $570.45
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


TOA D-2000DA1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

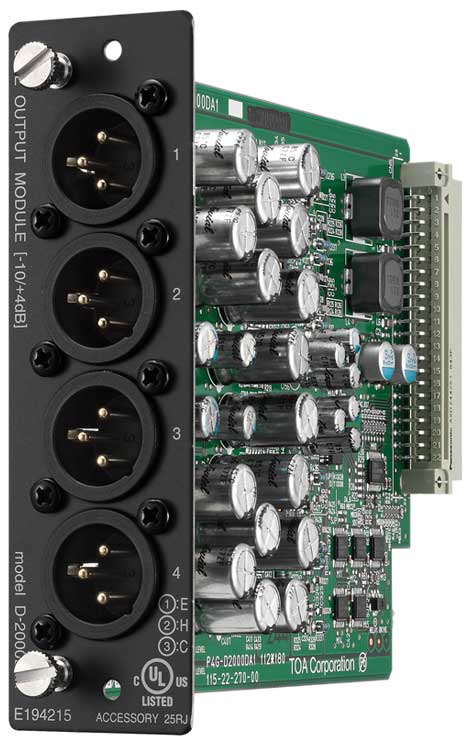

The D-2000DA1 Line Output Module is designed for use with the D-2008SP Digital Mixing Processor Unit and features high quality sound.The output level of each output terminal can be independently set to either +4dB or -10dB and its output mode independently set to either balanced or unbalanced type by the built-in DIP switch. It features XLR-type connectors.


  • Output: 4 channels, +4dB +/-10dB (changeable), adaptable load of 600 ohms or more, balanced (electronically balanced)/unbalanced (changeable), XLR-3-32 equivalent.
  • D/A Coverter: 24 bit
  • Sampling Frequency: 48kHz
  • Frequency Response: 20Hz - 20kHz, +/-1dB
  • Dynamic Range: 104dB (A-weighted) or more
  • Total Harmonic Distortion: 0.008% or less
  • Finish: Panel: Pre-coated steel plate, black, 30% gloss
  • Dimensions: 1.38" x 4.7" x 7.02"
  • Weight: 0.44lbs
