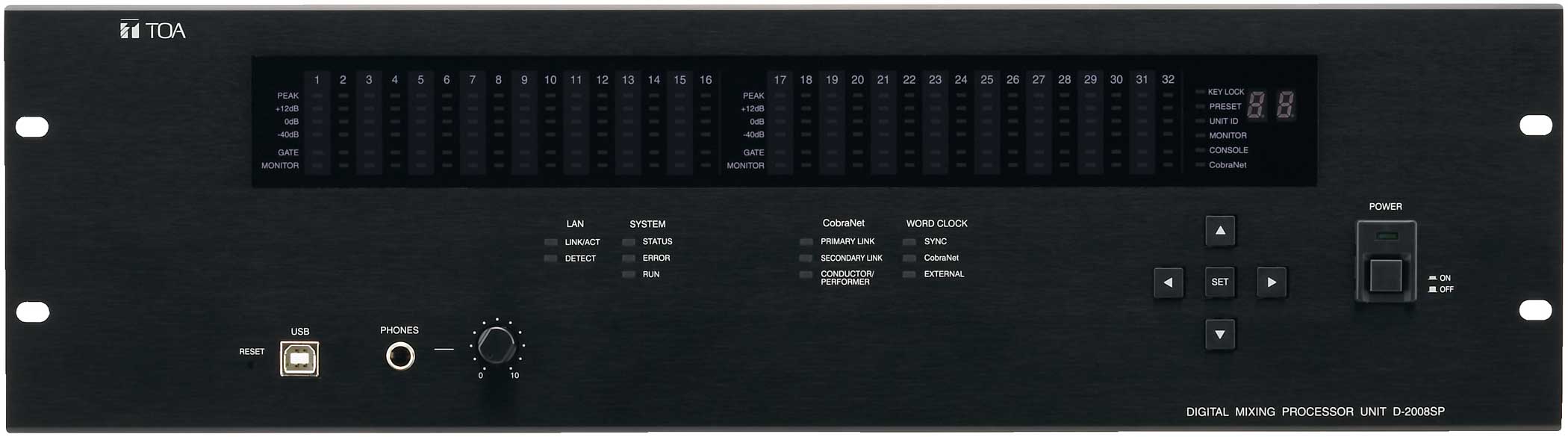

TOA D-2008SP CU
Digital Mixer, Modular, 32 Channel

OUR PART #  D2008SPCU

Our Price: $4,448.65
List Price: $5,505.20
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Expandable to a massive 128 input/output configuration, the D-2000 Series includes various modules and peripherals that can be combined to create the best possible sound in small to medium-size venues of all types, including hotel banquet and function rooms, indoor sports facilities, multipurpose halls and places of worship and many others.

Auto-mixing Advantages

NOM (Number of Open Microphones) - automatically adjusts output level based on the total number of open microphones. Ducker function (Auto-Mute function) - automatically works to attenuate outputs of channels with low priority.

Highly Effective Feedback Suppression

The D-2000 Series provides feedback elimination for up to 4 channels. In addition, each channel can control 12 problem frequencies. This
makes it convenient for feedback suppression in different areas of the same hall. 2 versatile suppression modes: Either presettable Auto Mode or realtime Dynamic Mode can be selected to suit the situation and eliminate feedback.

Essential Audio Processing

Delay, High-, Low-Pass and Notch Filters, Parametric Equalizers, Compressor/Auto Leveller, Gate, Crossovers and Crosspoint Gain.

32 Preset Memories for User Convenience

Up to 32 different routing and parameter configurations can be stored in memory and called up to handle venues such as multi-purpose halls
and conference rooms that require frequent changes in staging, seating and speaker arrangements.

Intuitive GUI

The dedicated software’s graphic, visually attractive user interface helps streamline settings and adjustments.

Mixing Console Option

The D-2008SP can be connected via network to the D-2012C mixing console with 12 motorized faders and 8 rotary encoders. This enables simplified mixing operation that suit non-professional users. Using the D-2012C, allows input and output channel signal levels to be monitored, volume changes made as well as recalling preset memory settings, and contact control.

VCA Control

D-2000 Series units used in conjunction with the optional D-911 VCA Fader Unit provides more of an analog mixer user interface.

RS-232C Control

The RS-232C port allows external control when connected to external devices such as AMX and Crestron control units. This also allows full control over venue lighting and power curtains (blackout) from a central remote location. This feature is particularly suited for AV presentation rooms, conference rooms and hotel banquet rooms.

User-Specific Configurations

The D-2000 Series fully modular design makes it a simple matter to create a configuration that meets specific user requirements.

24-Bus Matrix

Totally flexible input-to-output signal routing for zoning or room combining as needed.

Extending Operational Use for More Advanced Applications

A 128 input/output system can be constructed by connecting four units of the D-2008SP using the CobraNet module.
LAN-connected D-2008SP units can be remotely operated from the console or PC software.

SPECIFICATIONS

  • Power Source: AC mains, 50/60Hz
  • Power Consumption: 76W
  • Frequency Response: 20Hz - 20kHz, +/-1dB (+/-4dB input)
  • Sampling Frequency: 48kHz
  • Input and Output: Input Max. 32 channels, modular construction (modules optional)
    Output: Max. 32 channels, modular construction (modules optional), Monitor bus; 1 stereo input, 1 stereo output, Headphone: 1 stereo
  • Signal Processing: Feedback Suppression Function, Auto Mixing Function, Auto Mixing Group, Parametric equalizer,High-pass filter, Low-pass filter, Notch filter, All-pass filter, High shelving filter, Low shelving filter, Horn equalizer, Crossover filter, Compressor/Auto-Leveler, Output Delay, BUS Delay, Matrix, CobraNet Matrix, Crosspoint Gain
  • Preset Memory: 32
  • Auxiliary Function: Key Locking Function
  • LAN: Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) connected via a switching hub // Network protocol: TCP/IP // Connection cable: Shielded Category 5 or higher twisted pair LAN cable (CAT5-STP) // Maximum cable distance: 100m (109.36 yd) (between D-2008SP and switching sub)
  • Control: RS-232C, D-sub connector (9 pins) Used for external control // Module: Remote control module slot: 2
  • Operating Temperature: 41 degrees F to 104 degrees F
  • Dimensions: 18.98" × 5.22" × 13.52"
  • Weight: 13.89 lb
  • Accessories: Power cord (2m (6.5 ft)) × 1, Rack mounting screw × 4, Module mounting screw (spare) × 4,
    Blank panel (preinstalled on the module slot) × 8, CD (Set-up software) × 1

PERSONAL COMPUTER REQUIREMENTS

  • Personal Computer: PC-AT Compatible
  • Personal Computer Requirement: CPU: Pentium4 2GHz or more // Memory: 1.5GB or more (2GB or more recommended) // Display adapter: XGA (1024 x 768) or more // Network adapter: 10BASE-T or more
  • OS: Windows Vista, Windows XP (SP2) or later
  • Other: .NET Framework 3.5 SP1 (included in the supplied CD) installation required



TOA D-2008SP CU
Digital Mixer, Modular, 32 Channel

OUR PART #  D2008SPCU

Product Information:

Expandable to a massive 128 input/output configuration, the D-2000 Series includes various modules and peripherals that can be combined to create the best possible sound in small to medium-size venues of all types, including hotel banquet and function rooms, indoor sports facilities, multipurpose halls and places of worship and many others.

Auto-mixing Advantages

NOM (Number of Open Microphones) - automatically adjusts output level based on the total number of open microphones. Ducker function (Auto-Mute function) - automatically works to attenuate outputs of channels with low priority.

Highly Effective Feedback Suppression

The D-2000 Series provides feedback elimination for up to 4 channels. In addition, each channel can control 12 problem frequencies. This
makes it convenient for feedback suppression in different areas of the same hall. 2 versatile suppression modes: Either presettable Auto Mode or realtime Dynamic Mode can be selected to suit the situation and eliminate feedback.

Essential Audio Processing

Delay, High-, Low-Pass and Notch Filters, Parametric Equalizers, Compressor/Auto Leveller, Gate, Crossovers and Crosspoint Gain.

32 Preset Memories for User Convenience

Up to 32 different routing and parameter configurations can be stored in memory and called up to handle venues such as multi-purpose halls
and conference rooms that require frequent changes in staging, seating and speaker arrangements.

Intuitive GUI

The dedicated software’s graphic, visually attractive user interface helps streamline settings and adjustments.

Mixing Console Option

The D-2008SP can be connected via network to the D-2012C mixing console with 12 motorized faders and 8 rotary encoders. This enables simplified mixing operation that suit non-professional users. Using the D-2012C, allows input and output channel signal levels to be monitored, volume changes made as well as recalling preset memory settings, and contact control.

VCA Control

D-2000 Series units used in conjunction with the optional D-911 VCA Fader Unit provides more of an analog mixer user interface.

RS-232C Control

The RS-232C port allows external control when connected to external devices such as AMX and Crestron control units. This also allows full control over venue lighting and power curtains (blackout) from a central remote location. This feature is particularly suited for AV presentation rooms, conference rooms and hotel banquet rooms.

User-Specific Configurations

The D-2000 Series fully modular design makes it a simple matter to create a configuration that meets specific user requirements.

24-Bus Matrix

Totally flexible input-to-output signal routing for zoning or room combining as needed.

Extending Operational Use for More Advanced Applications

A 128 input/output system can be constructed by connecting four units of the D-2008SP using the CobraNet module.
LAN-connected D-2008SP units can be remotely operated from the console or PC software.

SPECIFICATIONS

  • Power Source: AC mains, 50/60Hz
  • Power Consumption: 76W
  • Frequency Response: 20Hz - 20kHz, +/-1dB (+/-4dB input)
  • Sampling Frequency: 48kHz
  • Input and Output: Input Max. 32 channels, modular construction (modules optional)
    Output: Max. 32 channels, modular construction (modules optional), Monitor bus; 1 stereo input, 1 stereo output, Headphone: 1 stereo
  • Signal Processing: Feedback Suppression Function, Auto Mixing Function, Auto Mixing Group, Parametric equalizer,High-pass filter, Low-pass filter, Notch filter, All-pass filter, High shelving filter, Low shelving filter, Horn equalizer, Crossover filter, Compressor/Auto-Leveler, Output Delay, BUS Delay, Matrix, CobraNet Matrix, Crosspoint Gain
  • Preset Memory: 32
  • Auxiliary Function: Key Locking Function
  • LAN: Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) connected via a switching hub // Network protocol: TCP/IP // Connection cable: Shielded Category 5 or higher twisted pair LAN cable (CAT5-STP) // Maximum cable distance: 100m (109.36 yd) (between D-2008SP and switching sub)
  • Control: RS-232C, D-sub connector (9 pins) Used for external control // Module: Remote control module slot: 2
  • Operating Temperature: 41 degrees F to 104 degrees F
  • Dimensions: 18.98" × 5.22" × 13.52"
  • Weight: 13.89 lb
  • Accessories: Power cord (2m (6.5 ft)) × 1, Rack mounting screw × 4, Module mounting screw (spare) × 4,
    Blank panel (preinstalled on the module slot) × 8, CD (Set-up software) × 1

PERSONAL COMPUTER REQUIREMENTS

  • Personal Computer: PC-AT Compatible
  • Personal Computer Requirement: CPU: Pentium4 2GHz or more // Memory: 1.5GB or more (2GB or more recommended) // Display adapter: XGA (1024 x 768) or more // Network adapter: 10BASE-T or more
  • OS: Windows Vista, Windows XP (SP2) or later
  • Other: .NET Framework 3.5 SP1 (included in the supplied CD) installation required
