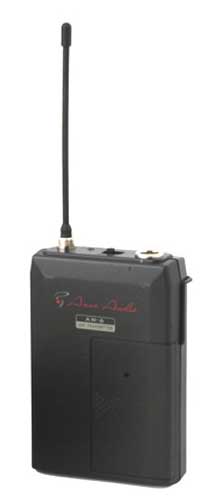

Special Projects AW-6
Wireless Body Pack Transmitter, 16Ch

OUR PART #  AW-6

Our Price: $175.18
List Price: $249.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

This bodypack transmitter operates in UHF band frequency with PLL synthesized control. UHF 16 preprogrammed selectable frequencies to avoid interference.

SPECIFICATIONS

  • Carrier Frequency Range: UHF band, 682.375 - 697.125 MHz
  • RF Power Output: 10mW (max)
  • Oscillation Mode: PLL synthesized, 16 channel selectable
  • Frequency Stability: +/- 0.005%
  • Maximum Deviation: +/-48kHz with limiting compressor
  • Spurious Emission: >60dB below carrier frequency
  • T.H.D.: <1% (at 1kHz)
  • Tone Signal: 32.768kHz
  • Battery: DC3V (2 x 1.5V AA size batteries ) or DC 2.4V ( 2 x 1.2V AA size rechargeable batteries)
  • Battery Charging: via included cable
  • Current Consumption: 110mA at 3V



Click to download

Special Projects AW-6
Wireless Body Pack Transmitter, 16Ch

OUR PART #  AW-6

Product Information:

This bodypack transmitter operates in UHF band frequency with PLL synthesized control. UHF 16 preprogrammed selectable frequencies to avoid interference.

SPECIFICATIONS

  • Carrier Frequency Range: UHF band, 682.375 - 697.125 MHz
  • RF Power Output: 10mW (max)
  • Oscillation Mode: PLL synthesized, 16 channel selectable
  • Frequency Stability: +/- 0.005%
  • Maximum Deviation: +/-48kHz with limiting compressor
  • Spurious Emission: >60dB below carrier frequency
  • T.H.D.: <1% (at 1kHz)
  • Tone Signal: 32.768kHz
  • Battery: DC3V (2 x 1.5V AA size batteries ) or DC 2.4V ( 2 x 1.2V AA size rechargeable batteries)
  • Battery Charging: via included cable
  • Current Consumption: 110mA at 3V



Click to download
