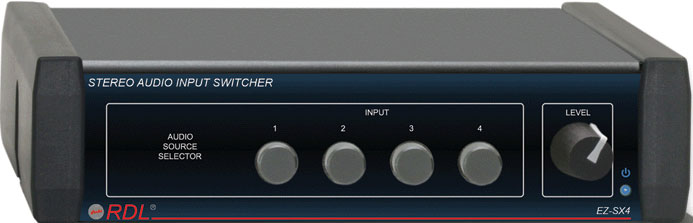

Radio Design Labs EZ-SX4
4x1 Stereo Audio Input Switcher

OUR PART #  EZ-SX4

Our Price: $156.55
List Price: $209.41
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' EZ-SX4 is a stereo audio source selector with an output volume control that adjusts the line-level output.  This unit is ideal as a four input source selector feeding an associated audio amplifier.  The user can conveniently select an audio source and adjust the level on the front panel.  The EZ-SX4 is used in stores, houses of worship, restaurants, clubs, home component systems and commercial sound systems.

Features:

  • Radio Design Labs' PS-24AS power supply is included
  • 4 Input Source Selection
  • Unbalanced Stereo Audio Inputs and Output
  • Inputs and Line Output on Rear-Panel RCA Jacks
  • Line Output Level Controlled by Front-Panel Knob
  • Full-Size Interlocking Pushbuttons on Front Panel

Typical Performance:

  • Inputs (4): Stereo on dual RCA jacks, > 10 kO, -10 dBV nominal, +10 dBV max.
  • LEVEL control: Off to +12 dB gain
  • Output: Stereo on dual RCA jacks, line level, -10 dBV nominal, +17 dBV max.
  • Frequency Response: 10 Hz to 20 kHz (±0.01 dB)
  • THD+N: < 0.02%
  • Crosstalk: < -70 dB (1 kHz)
  • Noise: < -80 dB (below -10 dBV)
  • 24 Vdc power supply current: 30 mA (idle), 60 mA (max.)
  • Case dimensions: 5.75" W x 5" D (14.6 x 12.7 cm)
  • Mounting size: 1/3 rack width
