Atlas IED PD75T High Efficiency Compression Driver, 70.7V-75W Transformer

OUR PART #: PD75T MFR #: PD75T

Copied to clipboard

Model PD75T is a fully environment-resistant 75 Watt driver for indoor or outdoor applications and is recommended for use in expansive and/or high ambient sound-level areas. ...Read more

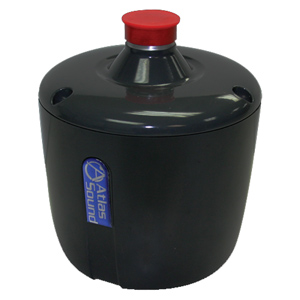

Atlas IED PD75T High Efficiency Compression Driver, 70.7V-75W Transformer Image 1
Atlas IED PD75T High Efficiency Compression Driver, 70.7V-75W Transformer
Our Price: $295.99
List Price: $366.99
You save 19%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Replacement Parts

Product Overview

Model PD75T is a fully environment-resistant 75 Watt driver for indoor or outdoor applications and is recommended for use in expansive and/or high ambient sound-level areas. This model features a sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, 2" voice coil and offers a plane wave frequency response of 100Hz – 3.7kHz (+5dB).

This unit, which is comprised of a transformer with 16O bypass, will meet a variety of applications. The PD75T provides screw-type terminals for matching direct to the 16O voice coil impedance and a built-in varnish impregnated, multi-tap 70.7 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover.

The PD75T is terminated in a standard 1 3/8"–18 thread male couplings for use with screw-on horns, or with Atlas Sound Model YDA-TH adapters for bolt-on large format horns. Diaphragms are replaceable with appropriate equipment. A replacement diaphragm, model PD75TDIA, is available. Internal components are enclosed within a protective die-cast and polycarbonate injection molded housing and finished in gray baked epoxy.

Features:

  • Outstanding Sound Reproduction and Power Handling For Signaling, Music, and Public Address Systems
  • Extended Frequency Response Range For Optimum Intelligibility
  • 75 Watt Power Rating
  • Environment-Resistant Construction For Indoor/Outdoor Use
  • Offered with Transformer and 16O Tap

Specifications:

  • Height: 7 1/8" (181mm)
  • Diameter: 6 3/16" (157mm)
  • Weight: 8.2lbs (3.72kg)
  • Power Rating: 75 Watts
  • Plane Wave Freq. Resp.: 100Hz - 3.7kHz (±5dB)
  • SPL 1mW PWT: 116dB Avg. 300Hz - 3kHz (±3dB)
  • Transformer Taps: 2.36, 4.7, 9.4, 19, 38, & 75 Watts
  • Impedance: 16, 67, 133, 267, 533, 1100, & 2100 O
