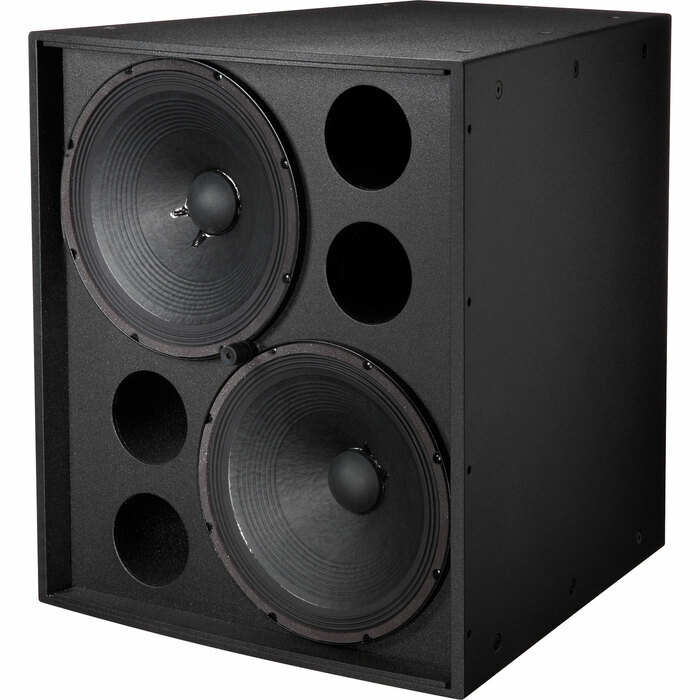

Electro-Voice EVF2151D-BLK
Dual 15” Front-Loaded Bass Element

OUR PART #:  EVF2151D-BLK

The EVF-2151D utilizes two DVX3159A 15” woofers, developed using FEA optimization for motor, suspension...
Learn More
Our Price: $2,268.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF2151D-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EVF-2151D utilizes two DVX3159A 15” woofers, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion and maximum intelligibility at high SPL.

Features:

  • Designed for Club Sound, Performance & Sports Venues, Stadium Systems, and other applications.
  • Dual DVX3159A 15” (381 mm) LF transducers
  • 101 dB sensitivity, 137 dB maximum SPL
  • System rating: 1000 W continuous, 4000 W peak
  • (28) M10 threaded suspension points
  • PI and FG versions available with gland nut and stainless-steel grille

Specifications:

  • Input Connections Dual 4-pin 10 AWG Phoenix/EuroBlock screw-terminals
  • Frequency Response (-3 dB) 40 Hz - 2.6 k Hz
  • Frequency Response (-10 dB) 30 Hz - 3.2 k Hz
  • Recommended High-Pass Frequency 35 Hz
  • Sensitivity 1 W/1 m 101 dB
  • Max. SPL/1m (calc) 137 dB
  • Coverage
    (Nominal -6 dB) H° Omnidirectional°
    Coverage
    (Nominal -6 dB) V° Omnidirectional °
  • System Power Handling(Continuous/Program/Peak) 1000/2000/4000 Watts
  • LF Transducer Dual DVX3159A, 15” (381 mm) drivers
  • Nominal Impedance (Passive) 4 O
  • Minimum Impedance 2.7 O
  • Enclosure Material 13-ply weather-resistant birch with EVCoat
  • Grill 16 GA powder-coated galvanneal with rotatable logo
  • Suspension (28) M10 threaded suspension points
  • Height 768.6 mm (30.26")
    Width 675.6 mm(26.6")
    Depth 726.4 mm (28.6")
  • Weight Net 53.1 kg (117.07 lbs)
    Shipping Weight 59.3 kg(130.73 lbs)
