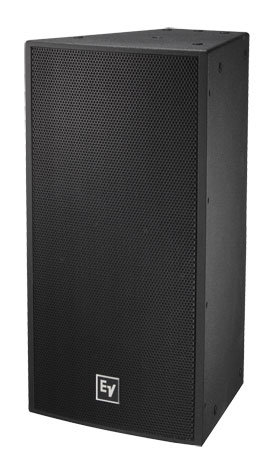

Electro-Voice EVF-1122D/96 12" 2-Way Loudspeaker with 90x60, EVCoat Black

The Electro-Voice EVF-1122D/96 is a high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.

The EVF-1122D/96 utilizes the DH7N, a high-output 3” titanium compression driver, coupled to a Constant Directivity™ 90° x 60° waveguide. The DVX3121A 12” woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.

The EVF-1122D/96’s features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoatTM for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.

Electrovoice EVF-1122D/96 Features:

• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available patterns with coverage from 60º to 120º
• 97 dB sensitivity, 131 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• 4th-order passive crossover with HF protection
• Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Electrovoice EVF-1122D/96 Specifications:

• Environmental Specs Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55
• Input Connections: Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
• Frequency Response (-3 dB): 57 - 18000 Hz
• Frequency Response (-10 dB): 49 - 21000 Hz
• Recommended High-Pass Frequency: 65 Hz
• Sensitivity: 1 W/1 m 97 dB
• Max. SPL/1m (calc): 131 dB
• Coverage (Nominal -6 dB): H 90 °
• Coverage (Nominal -6 dB): V 60 °
• System Power Handling (Continuous/Program/Peak): 600/1200/2400 Watts
• LF Transducer: DVX312A 12-inch (305 mm) woofer
• LF Nominal Impedance: 8 O
• HF Transducer: DH7N 3-inch (76mm) diaphragm compression driver
• Crossover Frequency: 1300 Hz
• Nominal Impedance (Passive): 8 O
• Minimum Impedance: 6 O
• Enclosure Material: 13-ply weather-resistant birch with EVCoat
• Grill: 16 GA powder-coated galvanneal with screen behind
• Suspension: (22) M10 threaded suspension points
• Height: 768.6 mm (30.26")
• Width: 406.3 mm (16")
• Depth: 413.3 mm (16.27")
• Weight:
  • Net: 29.7 kg (65.48 lbs)
  • Shipping Weight: 34.4 kg (75.84 lbs)
