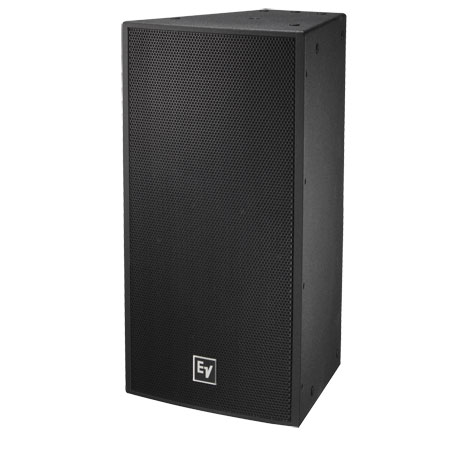

Electro-Voice EVF1122D/64-BLK
Single 12" Two-Way 60° x 40° Full-Range Loudspeaker System, Black

OUR PART #:  EVF1122D/64-BLACK

EVF-1122D/64 features a 60° x 40° rotatable waveguide, design for far field long throw coverage pattern.
Learn More
Our Price: $2,390.00
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF1122D/64-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
EVF-1122D/64 features a 60° x 40° rotatable waveguide, design for far field long throw coverage pattern.

Features:

  • Designed for Broadcast, Cinema, Performance & Sports Venues, Stadium Systems, and other applications.
  • DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit pure titanium compression driver
  • DVX3121A 12” (305 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • Coverage pattern: 60deg x 40deg Constant DirectivityTM 12" rotatable waveguide
  • 97 dB sensitivity, 131 dB maximum SPL
  • System rating: 600 W continuous, 2400 W peak
  • Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
  • (22) M10 threaded suspension points
  • PI version available with gland nut and stainless-steel grille

Specifications:

  • Input Connections: Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
  • Frequency Response (-3 dB): 57 Hz - 18 k Hz
  • Frequency Response (-10 dB): 49 Hz - 21 k Hz
  • Recommended High-Pass Frequency: 65 Hz
  • Sensitivity (1 W/1 m): 97 dB
  • Max. SPL/1m (calc): 131 dB
  • Coverage
    (Nominal -6 dB) H° 60 °
    Coverage
    (Nominal -6 dB)V° 40 °
  • System Power Handling: (Continuous/Program/Peak) 600 W continuous, 2400 W peak Watts
  • LF Transducer: DVX3121A, 12” (305 mm) driver
  • LF Nominal Impedance: 8 Ohms
  • HF Transducer: DH7N, 3” (76 mm) diaphragm compression driver
  • Crossover Frequency: 1300 Hz
  • Minimum Impedance: 6 Ohms
  • Enclosure Material: 13-ply weather-resistant birch with EVCoat
  • Grill: 16 GA powder-coated galvanneal with rotatable logo
  • Suspension: (22) M10 threaded suspension points
  • Dimensions: 30.26"H x 16"W x 16.27"D
  • Weight: 65.48 lbs
  • Shipping Weight: 75.84 lbs

Click to download
