Lightronics AC1109 Unity 8 Scene Button Station

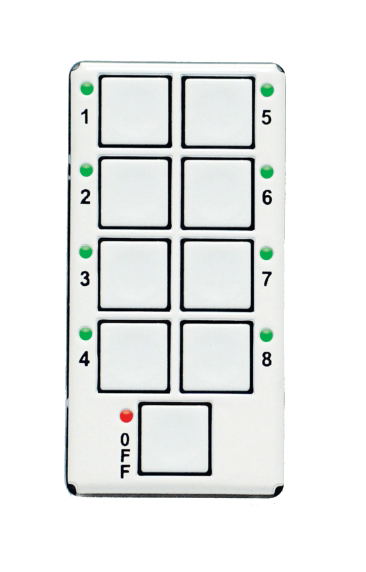

The AC-1109 is a wall mounted, eight scene, remote station for use with the Lightronics AR-1202 architectural dimmer. User operation is as simple as it can get (eight numbered scene buttons and an "OFF" control). LED scene indicators always display the active scene number.

The unit fits into a standard single gang wall switch box. The unit communicates with the AR-1202 via a four wire bus which will accommodate multiple AC- 1109 units and other wall station controls. All AC- 1109 wiring is low voltage.

The unit basically operates in an exclusive mode where one scene may be activated at a time. When a scene is selected, the AR-1202 fades at a user controlled rate to that scene. A blackout button is also provided to shut all scenes.

Scenes activated by the AC-1109 are actually set up and stored in the AR-1202 dimmer. The AC-1109 only tells the AR-1202 which scene to activate. The AR-1202 dimmer can be programmed to respond to the AC-1109 in various ways to create zone controls.
