Gefen EXT-VGAAUD-444 VGA Matrix 4x4

OUR PART #: EXT-VGAAUD-444

Copied to clipboard

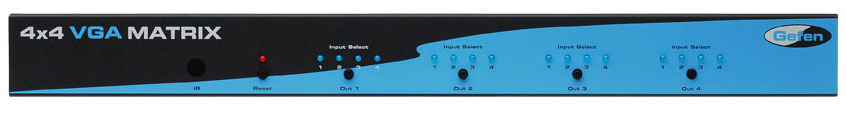

Gefen EXT-VGAAUD-444 VGA Matrix 4x4 Image 1
Gefen EXT-VGAAUD-444 VGA Matrix 4x4 Image 2
Gefen EXT-VGAAUD-444 VGA Matrix 4x4
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Gefen 4x4 VGA Matrix offers flexibility and convenience by routing high-quality VGA and analog audio from any of four VGA/audio sources to any of 4 VGA displays and audio devices.

The Gefen 4x4 VGA Matrix works with a wide variety of VGA sources such as computers, security cameras and DVRs. Every source is accessible at any time by any display by selecting it with the included IR remote, front panel buttons, or RS-232 control.

Features:

  • Switches easily between any four VGA/analog audio sources
  • Sends up to four VGA inputs with analog audio to any four VGA displays with analog audio
  • Supports high-definition VGA up to 1920 x 1200 resolution at 60 Hz
  • LED lights on the front panel show selected VGA routes
  • RS-232 Port for control automation or control via computer
  • Includes discrete IR remote control

Specifications:

  • Video Amplifier Bandwidth: 350 MHz
  • Input Video Signal: 1.2 Volts p-p
  • Input Sync Signal: 5 Volts p-p (TTL)
  • Horizontal Frequency Range: 15-70 KHz
  • Vertical Frequency Range: 30-170 Hz
  • Power Consumption: 60 Watts (max.)
  • Video Connectors: 8 x HD15, female (4 input, 4 output)
  • Audio Connectors: 8 x 3.5mm mini-stereo jack, female (4 input, 4 output)
  • RS-232 Control Port: 9-pin female DB9
