Elation ELAR Driver1 Pro 3-Channel RGB LED Tape Driver

OUR PART #: ELAR-DRIVER1-PRO MFR #: ELAR DRIVER1 PRO

Copied to clipboard

Elation Pro Lighting's ELAR Driver 1 Pro, part of the ELAR Series, is an ETL listed... ...Read more

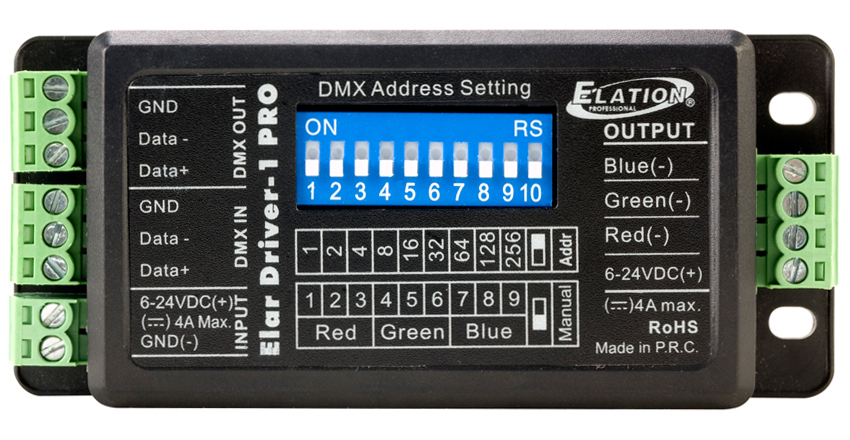

Elation ELAR Driver1 Pro 3-Channel RGB LED Tape Driver Image 1
Elation ELAR Driver1 Pro 3-Channel RGB LED Tape Driver Image 2
Elation ELAR Driver1 Pro 3-Channel RGB LED Tape Driver
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Elation Pro Lighting's ELAR Driver 1 Pro, part of the ELAR Series, is an ETL listed, multi-functional LED driver made to control RGB LEDs.This model also provides flicker free 2,000 Hz PWM dimming via DMX-512 and manual RGB variable intensity control via onboard dip switches.

The driver is contained in a compact polycarbonate housing and includes 12-14 AWG wire terminal blocks for 2-pin power, 3-pin DMX in/out, and 4-pin LED connections, dip switches for DMX addressing, and is powered by 6-24VDC 5A. With its small compact design, the ELAR Driver1 Pro is capable of easy mounting and integration into any system and includes a linking clip to attach additional drivers together.

Features

  • 3-channel, RGB LED driver allows for independent channel control
  • 4A max output capactiy
  • DMX512 (1990) input & output
  • Dip switches for addressing and manual mode operation
  • Compact design
  • 6~24VDC power requirement

Specifications

  • Manufacturer part #: ELAR-Driver-1 PRO
  • Power Requirement: 6~24VDC 4A Max
  • Input: 2-pin terminal socket (DC power); 3-pin terminal socket (DMX in)
  • Output: 3-pin terminal socket (DMX out); 4-pin terminal socket, load max,4A max
  • Housing: Polycarbonate
  • Ingress Protection Rating: IP20 (Indoor use)
  • Control: DMX-512
  • Connection: Terminal type
  • Listing: CE certified & ETL Listed
  • Operation Temperature: 32°F to 104°F (0°C to +40°C)
  • Storage Temperature: -4°F to 158°F (-20°C to +70°C)
  • Dimensions (LxWxH): 3.66" x 1.86" x 1.24" (59 x 30 x 20mm)
  • Weight: 1 lb. (150 kg)
