Renkus-Heinz ICX7
175W Mechanically Steerable Passive Column Array Loudspeaker in Black


Our Price: $1,145.81
List Price: $1,576.00
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Renkus-Heinz's ICX7 Iconyx is a powerful sound system that integrates computer software, digital amplification and superior acoustical design to deliver both enjoyable music and intelligible, natural speech, even in highly reverberant spaces where conventional solutions have failed.  Tall, slender Iconyx arrays mount flush to walls and columns, becoming virtually invisible in most applications.

The ICX7 is a mechanically steerable array module that supplements digitallly steered Iconyx arrays.  They deliver the same natural reproduction with a fixed acoustical beam: a high value solution for side fill, front fill, or "short throw" applications that don't demand programmable control.

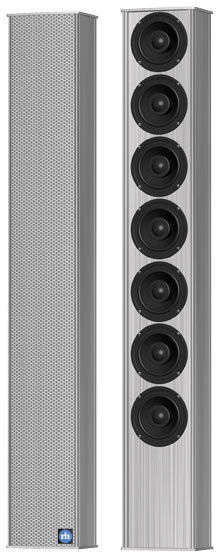

Note: Product shown in image is for illustrative purposes only - actual product is black.


  • The ICX7's acoustic beam focuses the sound on the audience and not on thewalls and ceiling, improving intelligibility in reverberant spaces.
  • The Iconyx ICX7 uses advanced, purpose-designed coaxial transducersto broaden its horizontal dispersion at high frequencies and improve musicalreproduction.
  • The ICX7 is designed for use with external amplifiers.
  • The narrow vertical opening angle allows the Iconyx modules to focus theenergy on the audience, while avoiding excessive energy in unwanted areas.


  • Sensitivity: 96 dB (1W/1m)
  • Frequency Range: 120 Hz to 18 kHz
  • Max SPL: 117 dB peak, 114 dB pgm @ 1m (3-octave bandwidth centered at 2kHz)
  • Horizontal Dispersion: 150 degrees up to 3 kHz; 120 degrees above 3 kHz
  • Vertical Dispersion: 30 degrees
  • Typical throw: 66 ft. (20 m)
  • Beam control: Effective down to 800 Hz
  • Number of transducers: 7
  • Dimensions: 44-3/8" H x 5-11/16" W x 4-3/8" D (112.8 x 14.4 x 11.2 cm)
  • Weight: 27 lbs (12.2 kg)
  • Power: 175 W RMS @ 6 ohms
  • Enclosure: Extruded aluminum with perforated steel grille
  • Transducers: Coaxial with a 4" woofer and 1" tweeter, RH model SSL.4.2: 25W RMS, 50 W program
  • Connectors: Screw terminals and looping Neutrik 4-pin Speakon-styleconnectors
  • Finish: White
