Quam DTS3
Desktop Station without Gooseneck Microphone

OUR PART #  DTS3

Our Price: $288.30
List Price: $449.14
You save 36%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

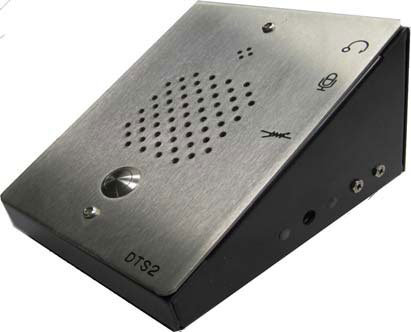

NOTE: The DTS2 is pictured above in lieu of an available picture of the DTS3 model.

Quam's DTS3 desktop intercom station is a vandal-resistant, microphone/loudspeaker assembly with a push-to-talk (PTT) button switch.  Loudspeaker baffle is 12 gage, brushed stainless steel with vandal-resistant internal baffle; enclosure is 16 gauge CRS with "pin-in-torx" hardware.

  • Console finish: black baked epoxy hybrid finish.

AUDIO SPECIFICATIONS

  • Sensitivity: -76 dBV/Pa ±4dB*
    *0dB=1V/Pa, 1kHz
  • Impedance: 500 ohms Nominal
  • Frequency Response: 130-12kHz, ±3dB
  • Loudspeaker Size: 3" Frame
  • Average Sensitivity: 87 dB, 1W/1M
  • Frequency Response: 150-10KhZ

ELECTRICAL SPECIFICATIONS:

  • Volume Control -15 dB Maximum attenuation
  • Headset Jack 3.5mm, mono output, disconnects "never full off" speakeroutput when activated
  • Electrical Connections Internal barrier strip

Quam DTS3
Desktop Station without Gooseneck Microphone

OUR PART #  DTS3

Product Information:

NOTE: The DTS2 is pictured above in lieu of an available picture of the DTS3 model.

Quam's DTS3 desktop intercom station is a vandal-resistant, microphone/loudspeaker assembly with a push-to-talk (PTT) button switch.  Loudspeaker baffle is 12 gage, brushed stainless steel with vandal-resistant internal baffle; enclosure is 16 gauge CRS with "pin-in-torx" hardware.

  • Console finish: black baked epoxy hybrid finish.

AUDIO SPECIFICATIONS

  • Sensitivity: -76 dBV/Pa ±4dB*
    *0dB=1V/Pa, 1kHz
  • Impedance: 500 ohms Nominal
  • Frequency Response: 130-12kHz, ±3dB
  • Loudspeaker Size: 3" Frame
  • Average Sensitivity: 87 dB, 1W/1M
  • Frequency Response: 150-10KhZ

ELECTRICAL SPECIFICATIONS:

  • Volume Control -15 dB Maximum attenuation
  • Headset Jack 3.5mm, mono output, disconnects "never full off" speakeroutput when activated
  • Electrical Connections Internal barrier strip
