Quam CIS8/8 Dual-Gang Listen-Only Station, No Button, Vandal-Resistant, 8 Ohm

OUR PART #: CIS8/8

Copied to clipboard

Quam-Nichol's CIS8 / 8 is a vandal resistant, "listen-only" station with integral loudspeaker. ...Read more

Quam CIS8/8 Dual-Gang Listen-Only Station, No Button, Vandal-Resistant, 8 Ohm Image 1
Quam CIS8/8 Dual-Gang Listen-Only Station, No Button, Vandal-Resistant, 8 Ohm
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Quam-Nichol's CIS8 / 8 is a vandal resistant, "listen-only" station with integral loudspeaker. The faceplate is 12 gauge, brushed stainless steel with three interwoven steel security screens mounted between the faceplate and the loudspeaker; tamper-resistant, #6-32 'pin-in-torx' hardware is included.

Intended Use:

  • Outdoor or indoor environment.

System Components:

  • Loudspeaker 2.5" weatherproof Phenolic impregnated cone
  • 8Ω voice coil

Specifications:

  • Speaker Size: 2.5"
  • Average Sensitivity: 87dB-SPL, 1W / 1M
  • Power rating: 1W RMS, EIA 426A Standard
  • Frequency Response: 200 - 8kHz, EIA 426A Standard
  • Nominal Coverage Angle: 90° Included Angle, -6dB / 2kHz, half space
  • Audio Connections: 0.205 spade lug

Note

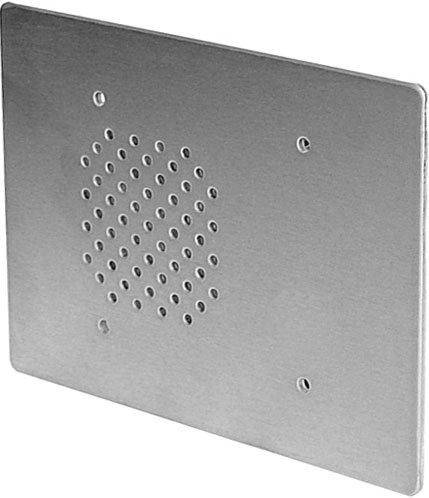

NOTE: 3-gang model shown above in lieu of an available photo of the CIS8/8.
