Quam CIS2/8 3-Gang Intercom Station, Vandal-Resistant, 8 Ohm

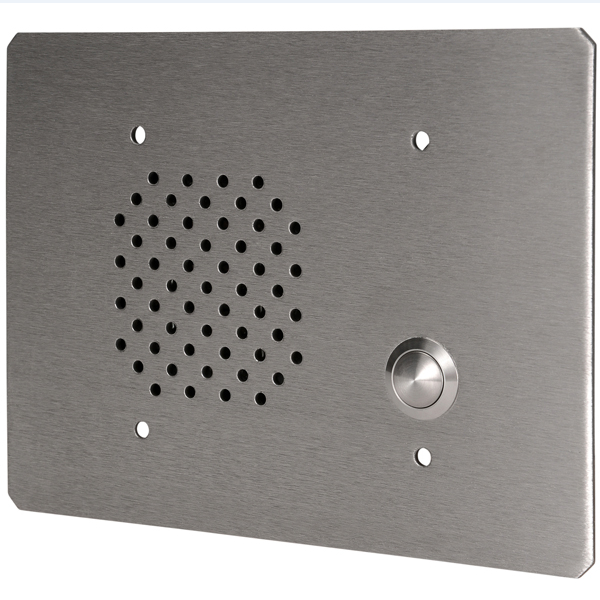

Quam-Nichols' CIS2 / 8 is a vandal-resistant call-in station with integral speaker/microphone and momentary, normally open, push-to-call button. The faceplate is 12 gauge, brushed stainless steel with three interwoven, steel security screens mounted between the faceplate and

the loudspeaker; tamper-resistant, #6-32 'pin-in-torx' hardware is included.

Intended Use:

• Outdoor or indoor environment.
• Signal tones and voice

System Components:

• Loudspeaker: 3" weatherproof, Phenolic impregnated cone
• 8Ω voice coil

Specifications:

• Speaker Size: 3"
• Average Sensitivity: 87dB-SPL, 1W / 1M
• Power rating: 1W RMS, EIA 426A Standard
• Frequency Response: 150 - 10kHz, EIA 426A Standard
• Nominal Coverage Angle:
  • 90° Included Angle
  • -6dB / 2kHz, half space
• Audio Connections: 0.205 spade lug
