Shure P10TR425CL

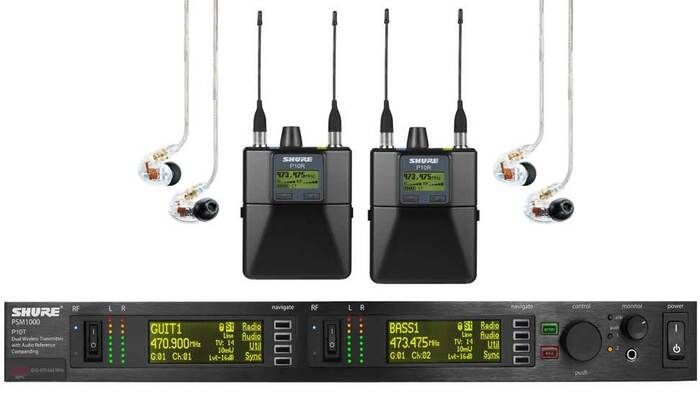

In-Ear Wireless System, w/P10T dual-channel transmitter, 2 P10R bodypacks, and 2 SE425CL earbuds

OUR PART #  P10TR425CL

Selected Model Price: $5,105.00
List Price: $6,381.00

Save up to 20%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The PSM 1000 Personal Monitor System features 72MHz bandwidth (region dependent), with vastly reduced inter-modulation, front-end band filtering and active gain control to deliver more channels on air with fewer dropouts. The system includes a Cue Mode (remotely
audition up to 20 mixes), enhanced stereo encoder, audio reference companding, scan & sync, RF mute, MixMode (balance L/R output levels for a personal mix on each bodypack) and networked control via Wireless Workbench 6. The rechargeable battery system provides real-time data on power levels, charge history and more. The full-rack dual transmitter with internal daisy-chaining power supply simplifies
integration with live performance wireless systems. P10R bodypacks feature two antennas for the most effective signal preservation. This package includes one P10T transmitter, two P10R receivers and two pairs of SE425CL in-ear monitors.

SYSTEM FEATURES

  • 72MHz Tuning Range: Vastly reduced inter-modulation, Front-End Band Filtering and Active Gain Control deliver more channels on air with fewer dropouts.
  • Dual Transmitter: Full-rack dual transmitter with internal daisly-chaining power supply; simplifies integration with live performance wireless systems.
  • Diversity: P10R bodypacks feature two antennas, for the most effective signal preservation in the category
  • Rechargeable Power: Rechargeable battery system with networked charging stations provides real-time data on power levels, charge history and more.
  • CueMode: Remotely audition up to 20 mixes at the touch of the button
  • Enhanced Stereo Encoder: Wider stereo field with superb separation improves signal clarity
  • Shure Audio Reference Companding: Patented Shure technology provides the clearest, strongest PSM sound in the industry
  • Scan & Sync: Find and assign channels easily, over wireless IR link, in seconds
  • RF Mute: “Do Not Disturb” RF button can disengage RF transmission; enables setup operations without disturbing the RF environment.
  • MixMode: Balance the levels of 2 channels while listening to both signals in both ears; create a personal mix with no impact on other mixes.

SPECIFICATIONS

PSM1000 System

  • RF Carrier Range: 470-922MHz (region-dependent)
  • Compatible Frequencies per Band: 49
  • Tuning Bandwidth: 72-80MHz (region-dependent)
  • Operating Range: 90m / 300' (environment-dependent)
  • Audio Frequency Response: 38Hz - 15kHz
  • Signal-To-Noise Ratio: 90dB typical (A-Weighted)
  • Total Harmonic Distortion: <0.5% typical (ref +/-34kHz Deviation @ 1kHz)
  • Companding: Patented Shure Audio Reference Companding
  • Spurious Rejection: >80dB typical (ref. to 12dB SINAD)
  • Frequency Stability: +/-2.5ppm
  • MPX Pilot Tone: 19kHz (+/-0.3kHz(
  • Modulation: FM, MPX Stereo (ref +/-34kHz deviation @ 1kHz)
  • Operating Temperature: -0.4 degrees F to 134.6 degrees F

P10R Receiver

  • Tri-Band RF Filtering: -3dB at 30.5MHz from center frequency of each band
  • Active RF Gain Control: Adjusts Receiver RF Sensitivity to provide 31dB more RF Dynamic Range
  • Active RF Sensitivity: 2.2uV at 20dB SINAD
  • Image Rejection: >90dB
  • Adjacent Channel Rejection: >70dB
  • Squelch Threshold: 22dB SINAD (+/-3dB) default setting
  • Intermodulation Attenuation: >70dB
  • Blocking: >80dB
  • Audio Output Power: 100mW (per output) / 1kHz @ <1% distortion, peak power, @ 32 ohms
  • Minimum Load Impedance: 9.5 ohms
  • High Boost: Selectable, +2dB, +4dB @ 10kHz
  • Volume Limiter: Selectable 3-9 Limits volume adjustment knob. Selected analogous to volume knob increment
  • Net Weight: 186g (with batteries)
  • Dimensions: 3.9" x 2.6" x 0.9"
  • Battery Life: 4-6 hours (continuous use) AA batteries

P10T Transmitter

  • RF Output Power: Selectable - 10, 50, 100mW (+20dBm)
  • RF Output Impedance: 50 ohms (typical)
  • Net Weight: 10.4lb
  • Dimensions: 1.7" x 19" x 13.5"
  • Power Requirement: Input 100-240VAC, 50/60 Hz, 0.5A max

SE425CL

  • Speaker Type: Dual High-Definition MicroDrivers
  • Sensitivity (1kHz): 109dB SPL/mW
  • Impedance (1kHz): 22 ohms
  • Noise Attenuation: Up to 37 dB
  • Frequency Range: 20Hz–19 kHz
  • Input Connector: Gold-plated 3.5 mm (1/8 inch)
  • Cable: 64 inch Detachable with wireform fit

Shure P10TR425CL
In-Ear Wireless System, w/P10T dual-channel transmitter, 2 P10R bodypacks, and 2 SE425CL earbuds

OUR PART #  P10TR425CL

Product Information:

The PSM 1000 Personal Monitor System features 72MHz bandwidth (region dependent), with vastly reduced inter-modulation, front-end band filtering and active gain control to deliver more channels on air with fewer dropouts. The system includes a Cue Mode (remotely
audition up to 20 mixes), enhanced stereo encoder, audio reference companding, scan & sync, RF mute, MixMode (balance L/R output levels for a personal mix on each bodypack) and networked control via Wireless Workbench 6. The rechargeable battery system provides real-time data on power levels, charge history and more. The full-rack dual transmitter with internal daisy-chaining power supply simplifies
integration with live performance wireless systems. P10R bodypacks feature two antennas for the most effective signal preservation. This package includes one P10T transmitter, two P10R receivers and two pairs of SE425CL in-ear monitors.

SYSTEM FEATURES

  • 72MHz Tuning Range: Vastly reduced inter-modulation, Front-End Band Filtering and Active Gain Control deliver more channels on air with fewer dropouts.
  • Dual Transmitter: Full-rack dual transmitter with internal daisly-chaining power supply; simplifies integration with live performance wireless systems.
  • Diversity: P10R bodypacks feature two antennas, for the most effective signal preservation in the category
  • Rechargeable Power: Rechargeable battery system with networked charging stations provides real-time data on power levels, charge history and more.
  • CueMode: Remotely audition up to 20 mixes at the touch of the button
  • Enhanced Stereo Encoder: Wider stereo field with superb separation improves signal clarity
  • Shure Audio Reference Companding: Patented Shure technology provides the clearest, strongest PSM sound in the industry
  • Scan & Sync: Find and assign channels easily, over wireless IR link, in seconds
  • RF Mute: “Do Not Disturb” RF button can disengage RF transmission; enables setup operations without disturbing the RF environment.
  • MixMode: Balance the levels of 2 channels while listening to both signals in both ears; create a personal mix with no impact on other mixes.

SPECIFICATIONS

PSM1000 System

  • RF Carrier Range: 470-922MHz (region-dependent)
  • Compatible Frequencies per Band: 49
  • Tuning Bandwidth: 72-80MHz (region-dependent)
  • Operating Range: 90m / 300' (environment-dependent)
  • Audio Frequency Response: 38Hz - 15kHz
  • Signal-To-Noise Ratio: 90dB typical (A-Weighted)
  • Total Harmonic Distortion: <0.5% typical (ref +/-34kHz Deviation @ 1kHz)
  • Companding: Patented Shure Audio Reference Companding
  • Spurious Rejection: >80dB typical (ref. to 12dB SINAD)
  • Frequency Stability: +/-2.5ppm
  • MPX Pilot Tone: 19kHz (+/-0.3kHz(
  • Modulation: FM, MPX Stereo (ref +/-34kHz deviation @ 1kHz)
  • Operating Temperature: -0.4 degrees F to 134.6 degrees F

P10R Receiver

  • Tri-Band RF Filtering: -3dB at 30.5MHz from center frequency of each band
  • Active RF Gain Control: Adjusts Receiver RF Sensitivity to provide 31dB more RF Dynamic Range
  • Active RF Sensitivity: 2.2uV at 20dB SINAD
  • Image Rejection: >90dB
  • Adjacent Channel Rejection: >70dB
  • Squelch Threshold: 22dB SINAD (+/-3dB) default setting
  • Intermodulation Attenuation: >70dB
  • Blocking: >80dB
  • Audio Output Power: 100mW (per output) / 1kHz @ <1% distortion, peak power, @ 32 ohms
  • Minimum Load Impedance: 9.5 ohms
  • High Boost: Selectable, +2dB, +4dB @ 10kHz
  • Volume Limiter: Selectable 3-9 Limits volume adjustment knob. Selected analogous to volume knob increment
  • Net Weight: 186g (with batteries)
  • Dimensions: 3.9" x 2.6" x 0.9"
  • Battery Life: 4-6 hours (continuous use) AA batteries

P10T Transmitter

  • RF Output Power: Selectable - 10, 50, 100mW (+20dBm)
  • RF Output Impedance: 50 ohms (typical)
  • Net Weight: 10.4lb
  • Dimensions: 1.7" x 19" x 13.5"
  • Power Requirement: Input 100-240VAC, 50/60 Hz, 0.5A max

SE425CL

  • Speaker Type: Dual High-Definition MicroDrivers
  • Sensitivity (1kHz): 109dB SPL/mW
  • Impedance (1kHz): 22 ohms
  • Noise Attenuation: Up to 37 dB
  • Frequency Range: 20Hz–19 kHz
  • Input Connector: Gold-plated 3.5 mm (1/8 inch)
  • Cable: 64 inch Detachable with wireform fit
