Product Overview
Renkus-Heinz's CF12S-5 Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

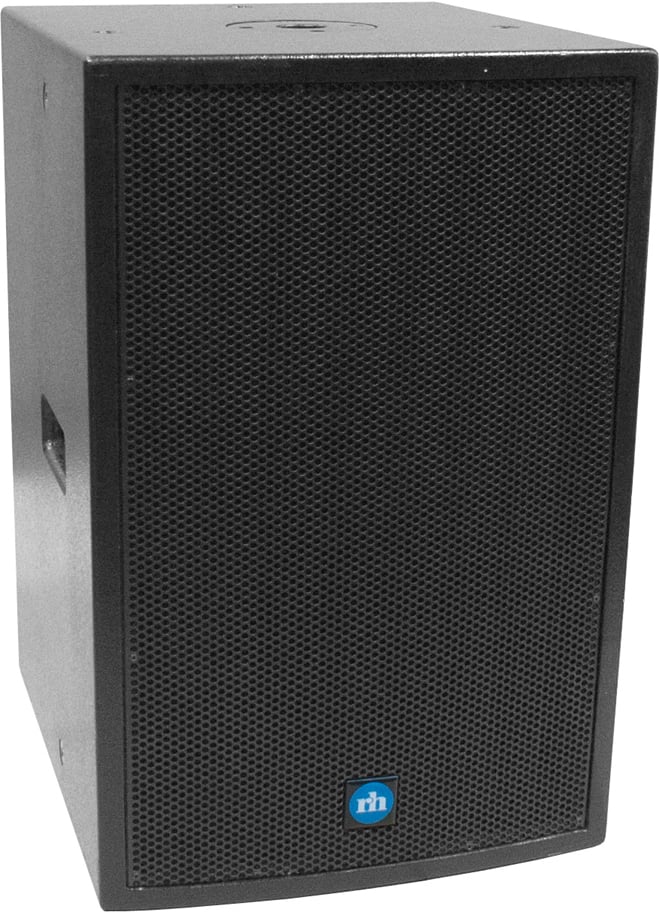

The CF12S subwoofer was developed as a companion piece to full range CF series loudspeakers. They provide the high-impact sub bass energy needed in many venues, and also serve as a mounting base for the loudspeakers.
Features:
- Powerful 12" Subwoofers: Outstanding 40 Hz to 120 Hz, 129 dB peak SPL sub-bass performance.
- High Performance, High Power Woofers: With long-throw magnetic structures easily handle 500 Watts of program power.
- Built-In Lo-Pass Filter: May be bypassed to allow use of an external electronic crossover.
- Applications: Virtually any application where high-output, low frequency content is required
- Permanent Installations: High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.
- Portable Applications: Live music reinforcement, DJ systems, houses of worship, schools, etc.
General Specifications:
- Sensitivity: 1.0 V for RPO
- Max SPL: 126 dB program, 129 dB peak
- Frequency Response: 40 Hz to 120 kHz
- Power: 115 V AC or 230V AC
- LF Driver: 12" woofer, model SSL12-18; 250 W RMS @ 4 ohms, 500W program
- Hardware:
- 12-point universal mounting hardware (Metric M10 threads)
- 35mm (1-3/8") diameter tripod socket
- Handles
- Enclosure: 12-ply hardwood, perforated metal grille
- Dimensions: 23-1/8" H x 15" W x 17-1/4" D (58.7 x 38.1 x 43.8 cm)
- Net Weight: 55 lbs (25 kg)
Amplifier Specifications:
- Power: PF1-500; 500 W RMS @ 4 Ohms
- Freq. Resp: +0.0, -.5 dB, 20 Hz to 20 kHz
- THD Distortion: < 0.02% typical
- Hum & Noise: < 100 dB (A weighted)
- Damping: > 100
- Input: 10K Ohm balanced differential
- Sensitivity: 1.0 V for RPO
- CMR: 74 dB
- Controls: Gain (screwdriver adjustable)
- Power Connector: IEC Power connector
- Input: Looping XLR; female in, male out (pin 1 chassis, pin 2 +, pin 3 -)
- Power:
- Switchable, 115 or 230 V AC, 50/60 Hz
- 5 A @ 120 V, 2.5 A @ 240 V
- Idle current: 400 ma @120 V; 200 ma @ 240 V
- Max inrush current: 1 A
