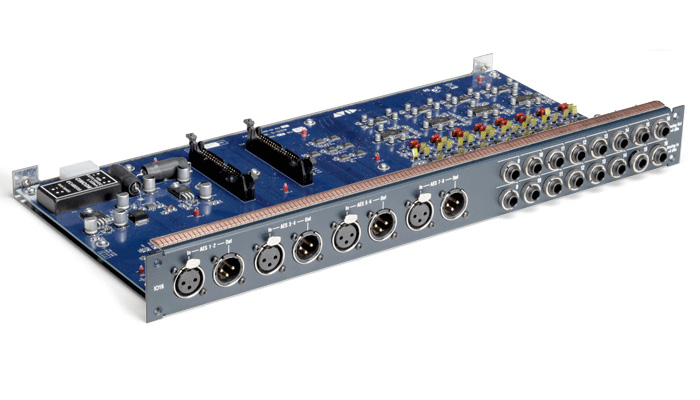

Avid VENUE IO16
Option Card for VENUE SC48

OUR PART #:  IO16-VENUE

Greatly enhance your mixing and routing possibilities—with the VENUE IO16 Option Card, you can connect your favorite outboard gear to VENUE SC48 locally.
Learn More
Our Price: $2,545.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Avid VENUE IO16
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Greatly enhance your mixing and routing possibilities—with the VENUE IO16 Option Card, you can connect your favorite outboard gear to VENUE SC48 locally. The card features eight analog line inputs and outputs, and eight AES digital inputs and outputs, making it easy to integrate third-party automixers, compressor and EQ inserts, effects processors, digital music players, and other hardware devices for additional mixing options.

Ideal for corporate AV events, concert sound, and houses of worship, you get the best of both worlds—access to a wide array of coveted, studio-standard plug-ins "in the box," plus the flexibility to connect outboard processors and sound sources as needed.

Avid VENUE IO16 Option Card Features:

  • 8 channel pairs of analog I/O through 1/4" female TRS connectors
  • 8 channels of AES digital inputs through four XLR3-female connectors
  • 8 channels of AES digital outputs through four XLR3-male connectors
  • Use all analog and digital I/O as discrete inputs and outputs to connect playback or recording devices, or as hardware insert points to connect to outboard gear
  • Get fuss-free operation with automatic Sample Rate Conversion (SRC) on all digital inputs, eliminating the need for a separate Word Clock when interconnecting digital devices
  • Easily route audio using the VENUE software patchbay

Avid VENUE IO16 Option Card Specifications:

  • Analog Inputs:
    • Connector (x8): 1/4” TRS, balanced
    • Maximum Input Level: +24dBu
    • Input Impedance: 10 kOhms
  • Analog Outputs:
    • Connector (x8): 1/4” TRS, balanced
    • Maximum Output Level: +24 dBu
    • Output Impedance: 50 Ohms
  • Digital Inputs:
    • Connector (x4): XLR3-F, balanced—supports two digital audio channels per connector
    • Format: AES/EBU
    • Word Length: 24-bit
    • Sample Rate: 48 kHz
    • Sample Rate Conversion: Yes
  • Digital Outputs:
    • Connector (x4): XLR3-M,balanced—supports two digital audio channels per connector
    • Format: AES/EBU
    • Word Length: 24-bit
    • Sample Rate: 48 kHz
    • Dithering: None
    • Channel Status Info: Pro, Audio, 48K (No Emphasis)

Note: All measurements at Fs = 48 kHz, with 150 Ohm source impedance and 600 Ohm load impedance, unless otherwise specified. 0 dBu =0.775Vrms
