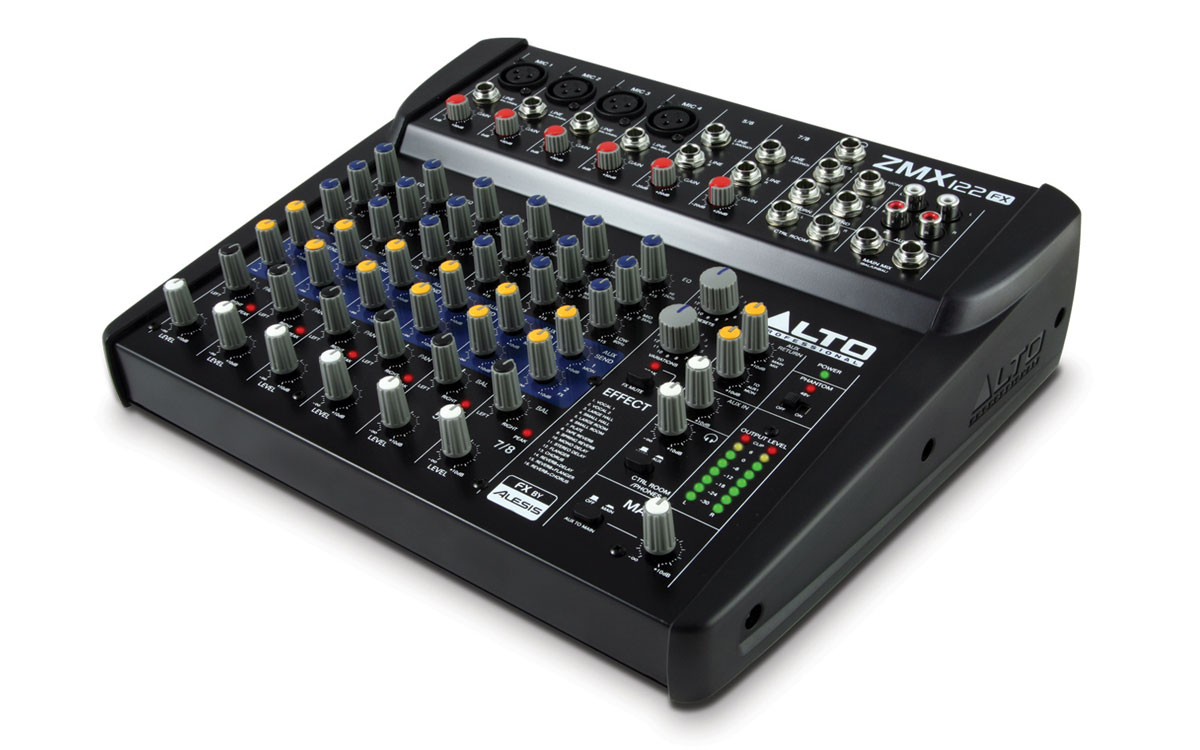

Alto Professional ZMX122FX
8-Channel Compact Mixer with Effects

OUR PART #:  ZMX122FX

The ZEPHYR ZMX122FX is an 8-Channel compact mixer with effects, 2 aux sends and 4 XLR mic inputs.
Learn More
Our Price: $119.00
List Price: $219.00
You save 46%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Alto Professional ZMX122FX
Qty:
In Stock

Similar Products

The ZEPHYR ZMX122FX is an 8-Channel compact mixer with effects, 2 aux sends and 4 XLR mic inputs.

Professional Mixing Features
The ZEPHYR ZMX122FX is an 8-channel, 2-bus mixer with the right amount of inputs, outputs, routing, EQ, and effects for more intimate live performance reinforcement situations. It features four microphone inputs with balanced TRS jacks (two with Phantom Power), a three-band EQ and two AUX sends on each of the four mono channels and the two stereo channels, and even two-track inputs for things such as audio playback. The ZEPHYR ZMX122FX is the perfect compact take-anywhere professional mixer.

265 Onboard Effects
Regardless of what you're mixing, give your mix a professional edge with 256 onboard 24-bit Alesis DSP effects designed in partnership with Alesis. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, chorusus and more. The ZEPHYR ZMX122FX offers 16 variations of 16 professional Alesis effects from which to build, tweak, and dial in your sound.

Versatile Inputs and Outputs
The ZEPHYR ZMX122FX is the swiss army knife your creative life needs. Not only can you can plug dynamic, condenser, and wireless microphones into the first four channels, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE inputs. But you also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, TV screen, or any number of sources. Choose the ZEPHYR ZMX122FX as the audio central command for your live performances, home studio, or video suite.

Features:

  • 12 total inputs
  • 4 mic input channels with gold plated XLR and balanced line inputs
  • 2 stereo input channels with balanced TRS jacks
  • Extremely high head room offering extra dynamic range
  • 3-band EQ on each channel
  • Integrated 24-bit Alesis digital effects processor with 256 choices (16 presets × 16 variations)
  • 2 AUX sends pre-channel for external effects and monitoring
  • Main output, control room, and headphone outputs

Specifcations:

Input Channels: Mono channels (CH1-CH4)
Microphone Input:

  • Electronically Balanced, Discrete Input Configuration
  • Frequency Response: 20Hz to 22kHz, +/-1dB
  • Distortion (THD&N): <0.005% At + 4dBu, 1kHz
  • Gain range: 0 dB to 50 dB (MIC)
  • Maximum Voltage Gain: 70 dB CH MIC INPUT?MAIN MIX OUT & TAPE OUT, 80 dB CH MIC INPUT?CTRL ROOM & PHONES, 60 dB CH MIC INPUT?AUX SEND
  • SNR (Signal to Noise Rate ): >110 dBu
  • Phantom power (Mic Pin2/Pin3 And Pin1): +45V~+49V with switch control

Line Input:

  • Electronically Balanced (SW to LINE)
  • Frequency Response: 20Hz to 22kHz, +/-1dB
  • Distortion (THD&N): <0.005% At + 4dBu, 1kHz
  • Gain Range: 15 dBu to 35 dBu

Stereo Channels: (CH5-8)
Line Input:

  • Electronically Balanced (SW to LINE)
  • SNR (Signal to Noise Rate ): ?110 dBu
  • Frequency Response: 20Hz to 22kHz, +/-1dB
  • Distortion (THD&N): <0.005% At + 4dBu, 1kHz
  • Gain range: -20 dBu to +20 dBu, 60 dB Ch Line -> Main mix out
  • Maximum Voltage Gain: 20 dB FX return -> Main mix out, 20 dB RCA Tape Input -> Main mix out

Other Specifications:
Impedance

  • Microphone Input: 3.9k Ohms
  • All Other Inputs: 10k Ohms or Greater
  • Tape Out: 1k Ohms
  • All Other Outputs: 120 Ohms

Equalization

  • Mono Channels: High ±15 dB @12 kHz, Mid ±15 dB @2.5 kHz, Low ±15 dB @80 Hz
  • Stereo Channels: High ±15 dB @12 kHz, Mid ±15 dB @2.5 kHz, Low ±15 dB @80 Hz

Alesis DSP Section

  • A/D And D/A Converters: 24-bit
  • DSP Resolution: 24-bit
  • Type of effects: Hall, Room, Vocal & Plate REVERBS Mono & Stereo DELAY (max DELAY TIME 650ms) Chorus, Flanger & Reverb MODULATIONS REVERB+DELAY, REVERB+CHORUS, REVERB+FLANGER combinations
  • Presets: 256
  • Controls: 256-Posistion PRESET Selector
  • Crosstalk: Adjacent Input <-80 dB @ 1KHz (CH1-6) , Input to Output <-75 dB @ 1KHz (STEREO L/R, CH1-4, PAN:  panned hard left or right)

Main Mix Section

  • Tape, Aux, Phones Output
  • Output level: 0dBu Unbalanced, 1/4" Jacks, Max out +22dBu Unbalanced, 1/4" Jacks
  • Noise (Bus noise): <-90dB @ 20Hz~22KHz (channel & MAIN level at 0dB, other at minimum, DSP mute)

Power

  • Power supply: 18V ~ 1500mA
  • Rated Power Consumption: 27W

Physical Characteristics

  • Dimensions (WxLxH): 10.08" x 9.84" x 2.83"
  • Weight: 5.07 lb
