Product Overview

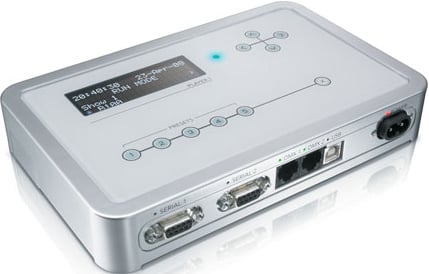

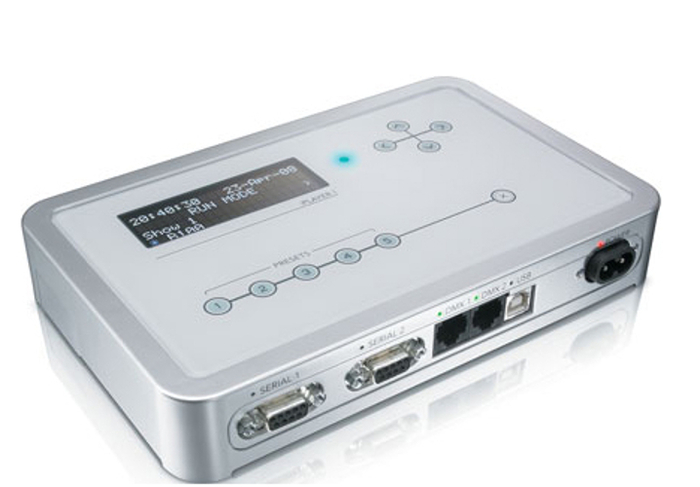

Philips Color Kinetics' iPlayer® 3 controller is a compact show storage and playback device capable of delivering light shows to installations with up to 340 unique light addresses. Packaged with ColorPlay® 3 light show authoring software, iPlayer 3 is designed to add new levels of sophistication to your installations while eliminating the need for expensive lighting boards and technical programming expertise.
Philip Color Kinetics iPlayer 3 Lighting Controller Features:
- Packaged with ColorPlay 3 light show authoring software - ColorPlay 3 gives you the flexibility to create and manage lightshows using fully customizable effects, multi-track editing, effect stacking, and custom transition styles
- Designed for use with the optional Controller Keypad - Controller Keypad is a wall-mounted user interface providing instant push-button playback of up to eight light shows
- Automate show playback – Set alarms to automatically trigger show playback based on a specific date, day of the week, weekdays, weekends, or an astronomical event, such as sunrise or sunset
- With onboard factory preset shows, custom show-authoring capabilities, an intuitive LCD interface, built-in light addressing features, and removable SD card storage
- Control 2 DMX universes – iPlayer 3 has two DMX output ports, each controlling a DMX512 universe of 170 unique light addresses
- Supports the optional AuxBox expansion device - AuxBox automatically triggers up to eight iPlayer 3 light shows using any remote triggering device with a dry-contact closure. Via the AuxBox, you can trigger light shows by motion sensors, third-party control or sensor systems, and more
Philip Color Kinetics iPlayer 3 Lighting Controller Specifications:
- Input Voltage: 100 – 240 VAC, 50 / 60 Hz, 5 W
- Computer Interface: USB 2.0
- External / Auxiliary Interface:
- Two DMX512 RJ45 ports
- TwoRS-232 9-pin serial ports
- Data Storage: Removable Secure Digital Card drive (256 MB Card included.)
- Dimensions (WxDxH): 8.2" x 5.4" x 1.3" (209 x 137 x 33 mm)
- Weight: 1.2 lbs (0.54 kg)
- Housing: Polycarbonate
- Operating Temperature: 14° – 104°F (-10° – 40°C)
- Humidity: 0 – 95%, non-condensing
- Certification: UL / cUL, FCC Class B, CE
- Environment: Dry Location, IP20
