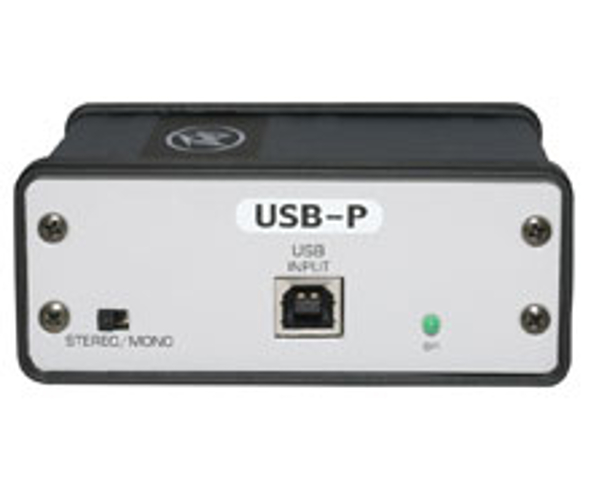

Peavey USB-P
Balanced USB Playback Device for Computer Audio Output

OUR PART #  USB-P

Our Price: $53.20
List Price: $84.19
You save 37%! (Low Price Guarantee)
In Stock

The Peavey USB-P is a USB audio device with transformer isolated balanced stereo outputs for connecting a computer to a sound system. As the name implies, the USB-P connects to the USB port of the computer and appears as the stereo output device. The dual transformers in the USB-P provide balanced outputs and ground isolation required when interfacing a computer to a sound system.

Peavey USB-P Features:

  • Standard USB class compliant audio device
  • Transformer isolation
  • Ground lifted balanced outputs
  • Playback only
  • USB powered
  • Stereo/Mono output switch

Peavey USB-P Specifications:

  • Frequency Response:  20 Hz - 20 kHz (+/- 1 dB)
  • THD + Noise:  < 0.15% @ 1 kHz, -9 dBu full scale output into 10 kOhms
  • Hum and Noise:  < 89 dB below full scale output
  • Output Level:
    • -9 dBu full scale into 10 kOhm line input
    • -13 dBu full scale into 2 kOhm mic input
  • Ground Lift:  Always engaged on the XLR outputs
  • Power:  Bus powered
  • Dimensions (HxWxD):  1.6" x 4" x 4" (41mm x 104mm x 104mm)
  • Weight:  10 oz (0.29 kg)

Peavey USB-P
Balanced USB Playback Device for Computer Audio Output

OUR PART #  USB-P

Product Information:

The Peavey USB-P is a USB audio device with transformer isolated balanced stereo outputs for connecting a computer to a sound system. As the name implies, the USB-P connects to the USB port of the computer and appears as the stereo output device. The dual transformers in the USB-P provide balanced outputs and ground isolation required when interfacing a computer to a sound system.

Peavey USB-P Features:

  • Standard USB class compliant audio device
  • Transformer isolation
  • Ground lifted balanced outputs
  • Playback only
  • USB powered
  • Stereo/Mono output switch

Peavey USB-P Specifications:

  • Frequency Response:  20 Hz - 20 kHz (+/- 1 dB)
  • THD + Noise:  < 0.15% @ 1 kHz, -9 dBu full scale output into 10 kOhms
  • Hum and Noise:  < 89 dB below full scale output
  • Output Level:
    • -9 dBu full scale into 10 kOhm line input
    • -13 dBu full scale into 2 kOhm mic input
  • Ground Lift:  Always engaged on the XLR outputs
  • Power:  Bus powered
  • Dimensions (HxWxD):  1.6" x 4" x 4" (41mm x 104mm x 104mm)
  • Weight:  10 oz (0.29 kg)
