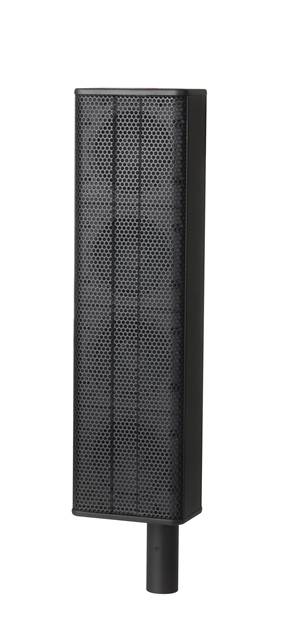

HK Audio E 435 4x3.5" High-Performance Array Speakers

HK Audio's E 435 mid/ high unit is part of their ELEMENTS PA system line and is loaded with (4) 3.5" vertically-arrayed high-performance speakers developed specifically for ELEMENTS. It achieves a very even throw pattern, with the volume, frequency spectrum, and audio image remaining uniform throughout the coverage area. One column may be comprised of up to 4 mid/ high units, which are quickly and reliably connected via E-Connect.

HK Audio E 435 Specifications:

• Power-handling nominal (RMS): 150 W RMS
• Frequency response (-10 dB): 140 Hz – 20 kHz, via integrated system filter
• Nominal impedance: 16 ohms
• Sensitivity, 1W/1m: 97 dB, all measurements taken under half-space conditions
• Connections: 1x E-Connect in, 1x E-Connect out
• Speaker: 4x 3.5" wideband speakers
• Directivity: 70° horizontal
• Crossover frequency: 140 Hz, 12 dB/ oct.
• Dimensions (W x H x D)*: approx. 4-7/16 " x 15" x 4-3/4"(11 x 38 x 12 cm)
  • *Excluding E-Connect sleeves.
• Weight: 5.2 lbs (2.35 kg)
