Marshall Electronics V-MD72
3RU 2x7" MD Series LED-Backlit Rack Monitor Unit

OUR PART #:  V-MD72

Marshall Electronics' MD series of rack mount monitors offer a flexible modular solution to system integration.
Learn More
Our Price: $1,930.00
List Price: $2,271.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-MD72
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics' MD series of rack mount monitors offer a flexible modular solution to system integration.  These rack-mountable monitors can be configured with a variety of video inputs that can be swapped in the field based on your evolving needs and requirements.  This eliminates the need to upgrade or replace equipment when a different input or application is required.  This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

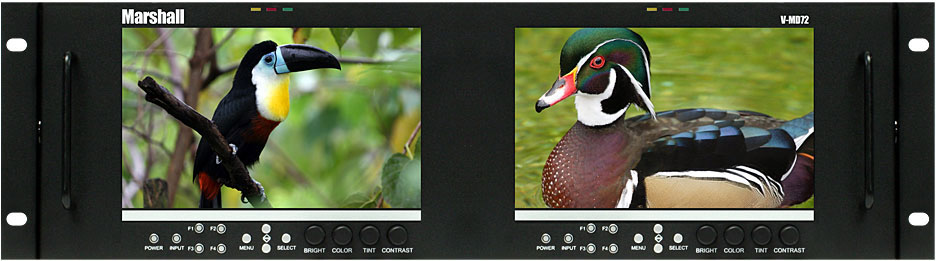

The V-MD72 offers two 800 x 480 LED-backlit LCDs in one single configuration, along with excellent viewing angles.  The V-MD72 feature list includes: Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, user-definable function buttons, and more.  A variety of modules will become available including the availability of 3G/HD/SDI with loop-through, Fiber-Optic input/output modules, and more.

Marshall's MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD/SDI transmission input/output modules.  These fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.

Specifications:

  • Display (Viewing Area): 7" x 2
  • Resolution (Pixels): 800 x 480
  • Aspect Ratio: 16:10
  • Pixel Pitch (H x V): 0.1905mm x 0.1905mm
  • Brightness (in cd/m²): 450
  • Available # of Optional Input Slots: 1 (per screen)
  • Dimensions: 18.9" x 5.2" x 1.2"
  • Weight:  5 lbs.
  • Power Consumption: 3 Amp @ 12VDC
