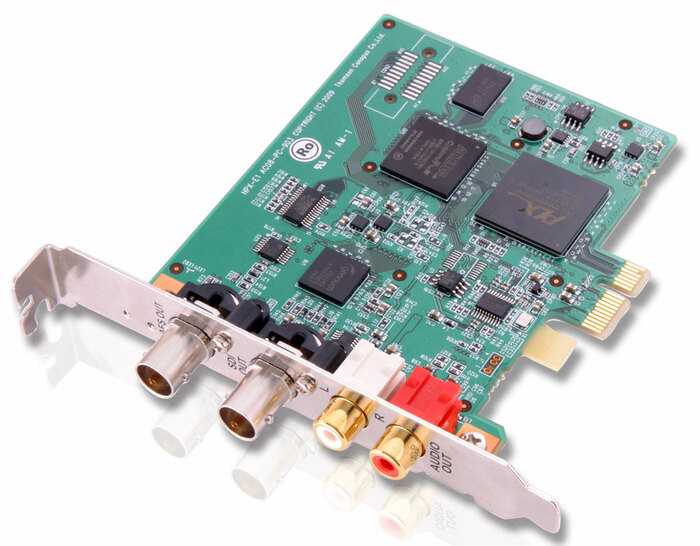

Grass Valley HD-SPARKPRO-PLUS
PCI Express HD/SD-SDI with Edius Software

OUR PART #:  HD-SPARKPRO-PLUS

For editors needing high-quality audio and video monitoring capability from the included EDUIS nonlinear editing system, HDSPARK Pro provides the solution.
Learn More
Our Price: $889.76
List Price: $999.00
You save 11%!
Write the first review.
Grass Valley HD-SPARKPRO-PLUS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

For editors needing high-quality audio and video monitoring capability from the included EDUIS nonlinear editing system, HDSPARK Pro provides the solution. The HDSPARK Pro is ideal for broadcast-quality programs that require a way to preview and evaluate the video and audio in the best quality possible.  It is also designed for users in a file-based, networked environments.

Key Features:

  • HD/SD-SDI output for full-resolution, real-time monitoring with embedded 8-channel digital audio from included EDUIS NLE software
  • 2-channel AES digital audio output via BNC connector for high-quality audio monitoring
  • 2-channel unbalanced audio output via RCA jacks for audio monitoring
  • Video and audio output stays perfectly in sync with editing windows for accurate editing and trimming
  • Ships with full version of EDIUS

Specifications:

  • Bus Interface: PCI Express Rev. 1.0ax1 lane
  • Video Formats (Output):
    - 1920x1080i50/59.94
    - 1920x1080p23.98
    - 1280x720p50/59.94
    - 720x480i59.94
    - 720x576i50
    - 720x480p59.94
    - 720x576p50
  • Video Output Connector: HD/SD SDI output (BNC), also supports SD SDI (SMPTE 292M) and SD-SDI (SMPTE 259M-C)
  • Audio Formats (Output): 2-channel AES/EBU audio; 8-channel SDI embedded audio (SMPTE 299M/272M-A); 2-channel analog audio
  • Audio Output Connectors: HD/SD-SDI (BNC); Monitor 1x stereo RCA (unbalanced)
  • Power Requirements: +3.3V 1.0A, +12V 0.07A
  • Physical Dimensions: 4.0 x 3.5 inches
  • Regulatory Compliance: CE, FCC Class A, C-Tick, ICES

System Requirements

  • CPU: Any Intel Core 2 or Core iX CPU.  Intel or AMD singel core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended).  SSE2 and SSE3 instruction set supported.
  • Memory: 1 GB RAM (4 GB or more recommended)
  • Hard Disk: 6 GB of hard disk space is required for installation; Drive with ATA100/7,200 RPM or faster is necessary for video storage
  • PCI Bus: One free PCI Express x1 bus slot
  • Graphics Card: A graphics card supporting higher resolution than 1024x768 (32-bit), Direct3D 9.0c or later, and PixelShader Model 3.0 or later is required.
    - For SD editing: 256 MB or larger required, 512 MB or larger recommended
    - For HD editing: 512 MB or larger required, 1 GB or larger recommended
  • Sound Card: A sound card with WDM driver support is required
  • DVD-ROM Drive: Required for software installation
  • USB Port: Free USB port (1.1 or higher) is required for security key
  • Operating System:
    - Windows 7 (32-bit or 64-bit)
    - Windows Vista (SP2 or later, 32-bit or 64-bit)
    - Windows XP (SP3 or later, 32-bit)

EDIUS software package included
